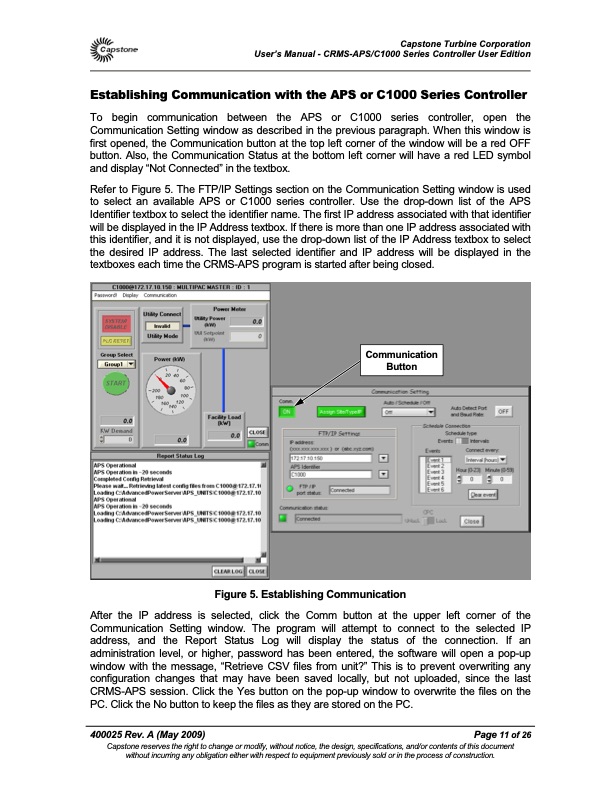

Capstone Turbine Corporation User’s Manual - CRMS-APS/C1000 Series Controller User Edition Establishing Communication with the APS or C1000 Series Controller To begin communication between the APS or C1000 series controller, open the Communication Setting window as described in the previous paragraph. When this window is first opened, the Communication button at the top left corner of the window will be a red OFF button. Also, the Communication Status at the bottom left corner will have a red LED symbol and display “Not Connected” in the textbox. Refer to Figure 5. The FTP/IP Settings section on the Communication Setting window is used to select an available APS or C1000 series controller. Use the drop-down list of the APS Identifier textbox to select the identifier name. The first IP address associated with that identifier will be displayed in the IP Address textbox. If there is more than one IP address associated with this identifier, and it is not displayed, use the drop-down list of the IP Address textbox to select the desired IP address. The last selected identifier and IP address will be displayed in the textboxes each time the CRMS-APS program is started after being closed. Communication Button Figure 5. Establishing Communication After the IP address is selected, click the Comm button at the upper left corner of the Communication Setting window. The program will attempt to connect to the selected IP address, and the Report Status Log will display the status of the connection. If an administration level, or higher, password has been entered, the software will open a pop-up window with the message, “Retrieve CSV files from unit?” This is to prevent overwriting any configuration changes that may have been saved locally, but not uploaded, since the last CRMS-APS session. Click the Yes button on the pop-up window to overwrite the files on the PC. Click the No button to keep the files as they are stored on the PC. 400025 Rev. A (May 2009) Page 11 of 26 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C1000 Series Controller Software
