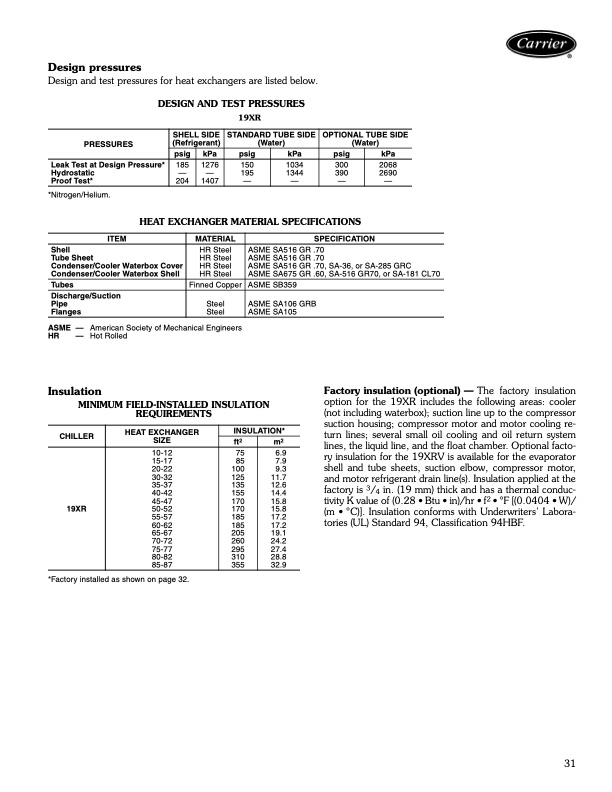

Design pressures Design and test pressures for heat exchangers are listed below. DESIGN AND TEST PRESSURES 19XR PRESSURES Leak Test at Design Pressure* Hydrostatic Proof Test* OPTIONAL TUBE SIDE (Water) psig kPa 300 2068 390 2690 — — SHELL SIDE (Refrigerant) STANDARD TUBE SIDE (Water) psig kPa psig kPa 185 1276 —— 204 1407 150 1034 195 1344 —— *Nitrogen/Helium. ITEM Shell Tube Sheet Condenser/Cooler Waterbox Cover Condenser/Cooler Waterbox Shell Tubes Discharge/Suction Pipe Flanges ASME — American Society of Mechanical Engineers HR — Hot Rolled Insulation HEAT EXCHANGER MATERIAL SPECIFICATIONS SPECIFICATION GR .70 GR .70 GR .70, SA-36, or SA-285 GRC GR .60, SA-516 GR70, or SA-181 CL70 GRB MATERIAL HR Steel HR Steel HR Steel HR Steel Finned Copper Steel Steel MINIMUM FIELD-INSTALLED INSULATION REQUIREMENTS Factory insulation (optional) — The factory insulation option for the 19XR includes the following areas: cooler (not including waterbox); suction line up to the compressor suction housing; compressor motor and motor cooling re- turn lines; several small oil cooling and oil return system lines, the liquid line, and the float chamber. Optional facto- ry insulation for the 19XRV is available for the evaporator shell and tube sheets, suction elbow, compressor motor, and motor refrigerant drain line(s). Insulation applied at the factory is 3/4 in. (19 mm) thick and has a thermal conduc- tivity K value of (0.28 • Btu • in)/hr • f2 • °F [(0.0404 • W)/ (m • °C)]. Insulation conforms with Underwriters’ Labora- tories (UL) Standard 94, Classification 94HBF. ASME SA516 ASME SA516 ASME SA516 ASME SA675 ASME SB359 ASME SA106 ASME SA105 HEAT EXCHANGER SIZE 10-12 15-17 20-22 30-32 35-37 40-42 45-47 50-52 55-57 60-62 65-67 70-72 75-77 80-82 85-87 ft2 75 85 100 125 135 155 170 170 185 185 205 260 295 310 355 CHILLER INSULATION* m2 6.9 7.9 9.3 11.7 12.6 14.4 15.8 19XR 15.8 17.2 17.2 19.1 24.2 27.4 28.8 32.9 *Factory installed as shown on page 32. 31PDF Image | Carrier Product Data 19XR,XRV High-Efficiency Hermetic Centrifugal Liquid Chiller 50/60 Hz HFC-134a 19XR — 200 to 1500 Nominal Tons (703 to 5275 kW) 19XRV — 200 to 800 Nominal Tons (703 to 2813 kW)
