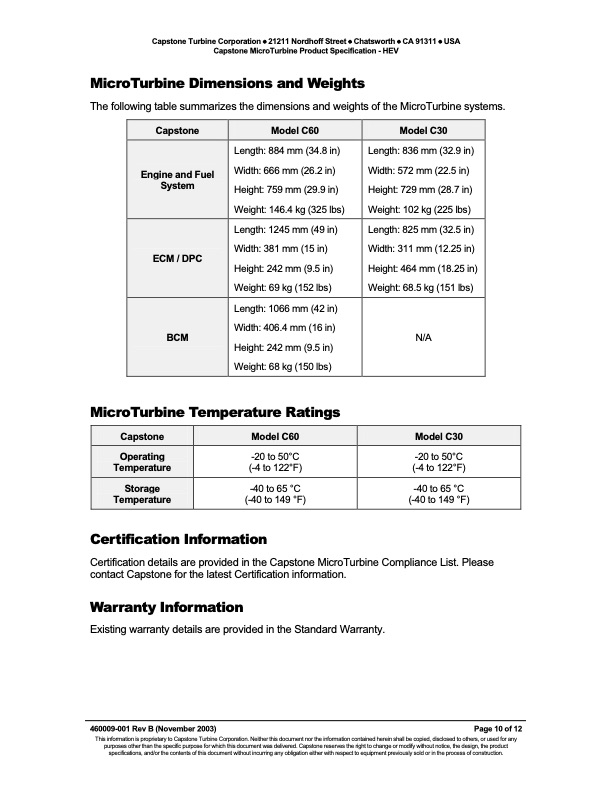

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification - HEV MicroTurbine Dimensions and Weights The following table summarizes the dimensions and weights of the MicroTurbine systems. Capstone Model C60 Model C30 Engine and Fuel System Length: 884 mm (34.8 in) Width: 666 mm (26.2 in) Height: 759 mm (29.9 in) Weight: 146.4 kg (325 lbs) Length: 836 mm (32.9 in) Width: 572 mm (22.5 in) Height: 729 mm (28.7 in) Weight: 102 kg (225 lbs) ECM / DPC Length: 1245 mm (49 in) Width: 381 mm (15 in) Height: 242 mm (9.5 in) Weight: 69 kg (152 lbs) Length: 825 mm (32.5 in) Width: 311 mm (12.25 in) Height: 464 mm (18.25 in) Weight: 68.5 kg (151 lbs) BCM Length: 1066 mm (42 in) Width: 406.4 mm (16 in) Height: 242 mm (9.5 in) Weight: 68 kg (150 lbs) N/A MicroTurbine Temperature Ratings -20 to 50°C -20 to 50°C (-4 to 122°F) (-4 to 122°F) -40to65°C -40to65°C (-40 to 149 °F) (-40 to 149 °F) Certification Information Certification details are provided in the Capstone MicroTurbine Compliance List. Please contact Capstone for the latest Certification information. Warranty Information Existing warranty details are provided in the Standard Warranty. 460009-001 Rev B (November 2003) Page 10 of 12 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Model C60 Model C30 Operating Temperature Storage TemperaturePDF Image | Product Specification Technical Specifications and Descriptions for a Single Capstone DC Model MicroTurbine - HEV (Recuperated)
