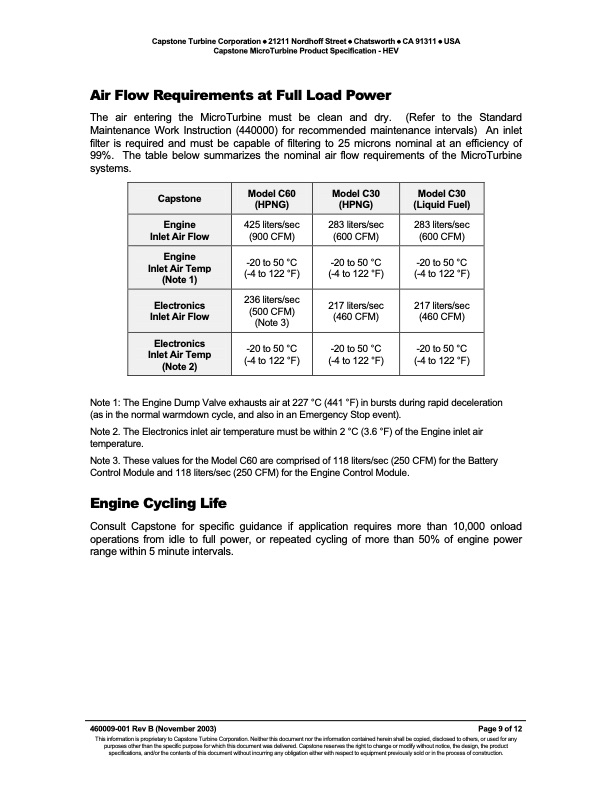

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification - HEV Air Flow Requirements at Full Load Power The air entering the MicroTurbine must be clean and dry. (Refer to the Standard Maintenance Work Instruction (440000) for recommended maintenance intervals) An inlet filter is required and must be capable of filtering to 25 microns nominal at an efficiency of 99%. The table below summarizes the nominal air flow requirements of the MicroTurbine systems. 425 liters/sec 283 liters/sec 283 liters/sec (900 CFM) (600 CFM) (600 CFM) Capstone Engine Inlet Air Temp (Note 1) Model C60 (HPNG) Model C30 (HPNG) Model C30 (Liquid Fuel) Engine Inlet Air Flow -20to50°C (-4 to 122 °F) -20to50°C (-4 to 122 °F) -20to50°C (-4 to 122 °F) Electronics Inlet Air Flow 236 liters/sec (500 CFM) (Note 3) 217 liters/sec (460 CFM) 217 liters/sec (460 CFM) Electronics Inlet Air Temp (Note 2) -20to50°C (-4 to 122 °F) -20to50°C (-4 to 122 °F) -20to50°C (-4 to 122 °F) Note 1: The Engine Dump Valve exhausts air at 227 °C (441 °F) in bursts during rapid deceleration (as in the normal warmdown cycle, and also in an Emergency Stop event). Note 2. The Electronics inlet air temperature must be within 2 °C (3.6 °F) of the Engine inlet air temperature. Note 3. These values for the Model C60 are comprised of 118 liters/sec (250 CFM) for the Battery Control Module and 118 liters/sec (250 CFM) for the Engine Control Module. Engine Cycling Life Consult Capstone for specific guidance if application requires more than 10,000 onload operations from idle to full power, or repeated cycling of more than 50% of engine power range within 5 minute intervals. 460009-001 Rev B (November 2003) Page 9 of 12 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Technical Specifications and Descriptions for a Single Capstone DC Model MicroTurbine - HEV (Recuperated)
