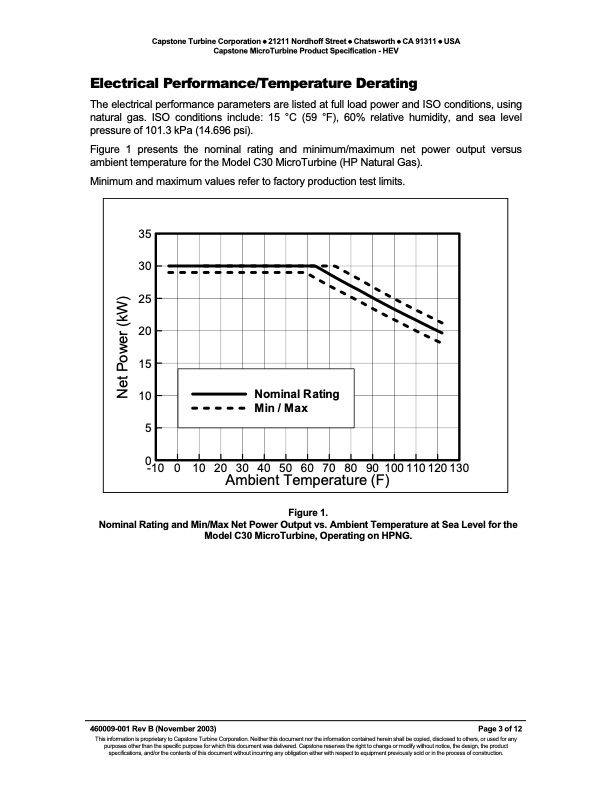

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification - HEV Electrical Performance/Temperature Derating The electrical performance parameters are listed at full load power and ISO conditions, using natural gas. ISO conditions include: 15 °C (59 °F), 60% relative humidity, and sea level pressure of 101.3 kPa (14.696 psi). Figure 1 presents the nominal rating and minimum/maximum net power output versus ambient temperature for the Model C30 MicroTurbine (HP Natural Gas). Minimum and maximum values refer to factory production test limits. 35 30 25 20 15 10 5 0 -10 0 10 20 30 40 50 60 70 80 90 100110120130 Ambient Temperature (F) Nominal Rating Min / Max Figure 1. Nominal Rating and Min/Max Net Power Output vs. Ambient Temperature at Sea Level for the Model C30 MicroTurbine, Operating on HPNG. 460009-001 Rev B (November 2003) Page 3 of 12 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Net Power (kW)PDF Image | Product Specification Technical Specifications and Descriptions for a Single Capstone DC Model MicroTurbine - HEV (Recuperated)
