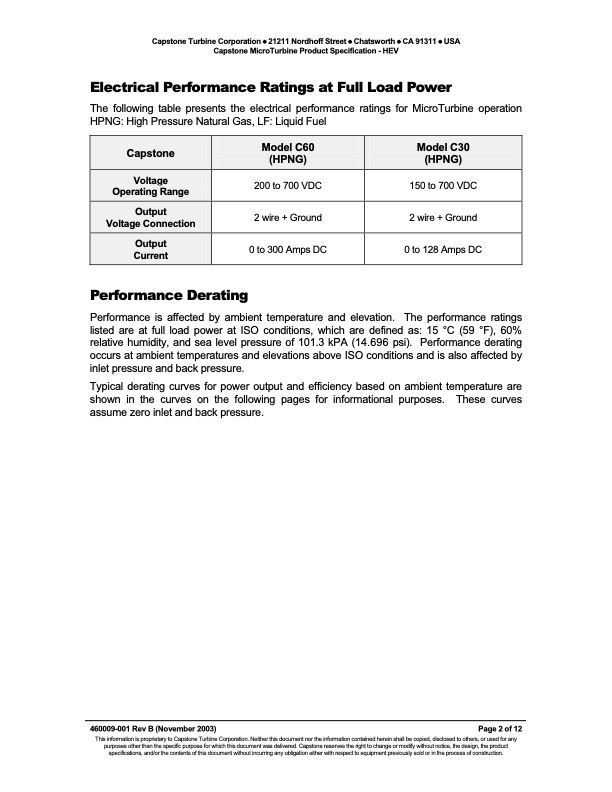

Text from PDF Page: 002
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification - HEV Electrical Performance Ratings at Full Load Power The following table presents the electrical performance ratings for MicroTurbine operation HPNG: High Pressure Natural Gas, LF: Liquid Fuel Capstone Model C60 (HPNG) Model C30 (HPNG) Voltage Operating Range Output Voltage Connection Output Current 200 to 700 VDC 150 to 700 VDC 2 wire + Ground 2 wire + Ground 0to300AmpsDC 0to128AmpsDC Performance Derating Performance is affected by ambient temperature and elevation. The performance ratings listed are at full load power at ISO conditions, which are defined as: 15 °C (59 °F), 60% relative humidity, and sea level pressure of 101.3 kPA (14.696 psi). Performance derating occurs at ambient temperatures and elevations above ISO conditions and is also affected by inlet pressure and back pressure. Typical derating curves for power output and efficiency based on ambient temperature are shown in the curves on the following pages for informational purposes. These curves assume zero inlet and back pressure. 460009-001 Rev B (November 2003) Page 2 of 12 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Technical Specifications and Descriptions for a Single Capstone DC Model MicroTurbine - HEV (Recuperated)
PDF Search Title:
Product Specification Technical Specifications and Descriptions for a Single Capstone DC Model MicroTurbine - HEV (Recuperated)Original File Name Searched:
