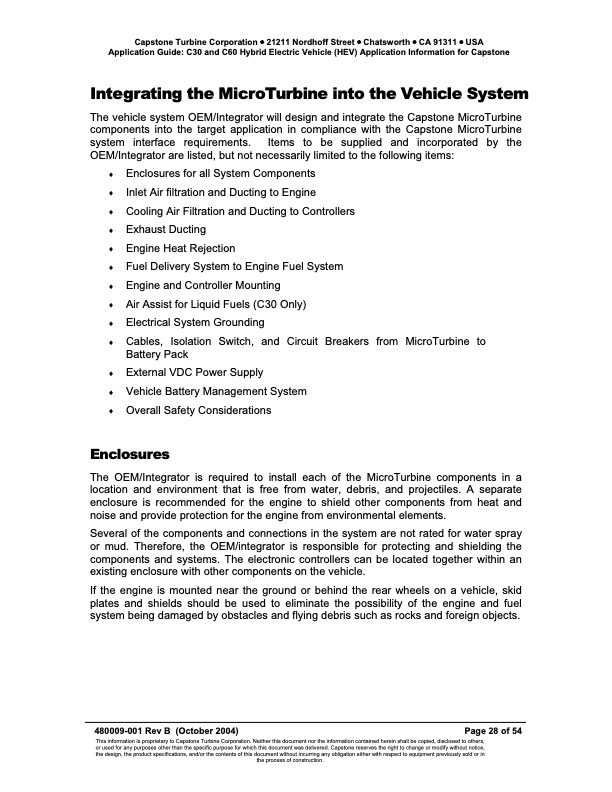

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Integrating the MicroTurbine into the Vehicle System The vehicle system OEM/Integrator will design and integrate the Capstone MicroTurbine components into the target application in compliance with the Capstone MicroTurbine system interface requirements. Items to be supplied and incorporated by the OEM/Integrator are listed, but not necessarily limited to the following items: ♦ Enclosures for all System Components ♦ Inlet Air filtration and Ducting to Engine ♦ Cooling Air Filtration and Ducting to Controllers ♦ Exhaust Ducting ♦ Engine Heat Rejection ♦ Fuel Delivery System to Engine Fuel System ♦ Engine and Controller Mounting ♦ Air Assist for Liquid Fuels (C30 Only) ♦ Electrical System Grounding ♦ Cables, Isolation Switch, and Circuit Breakers from MicroTurbine to Battery Pack ♦ External VDC Power Supply ♦ Vehicle Battery Management System ♦ Overall Safety Considerations Enclosures The OEM/Integrator is required to install each of the MicroTurbine components in a location and environment that is free from water, debris, and projectiles. A separate enclosure is recommended for the engine to shield other components from heat and noise and provide protection for the engine from environmental elements. Several of the components and connections in the system are not rated for water spray or mud. Therefore, the OEM/integrator is responsible for protecting and shielding the components and systems. The electronic controllers can be located together within an existing enclosure with other components on the vehicle. If the engine is mounted near the ground or behind the rear wheels on a vehicle, skid plates and shields should be used to eliminate the possibility of the engine and fuel system being damaged by obstacles and flying debris such as rocks and foreign objects. 480009-001 Rev B (October 2004) Page 28 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
