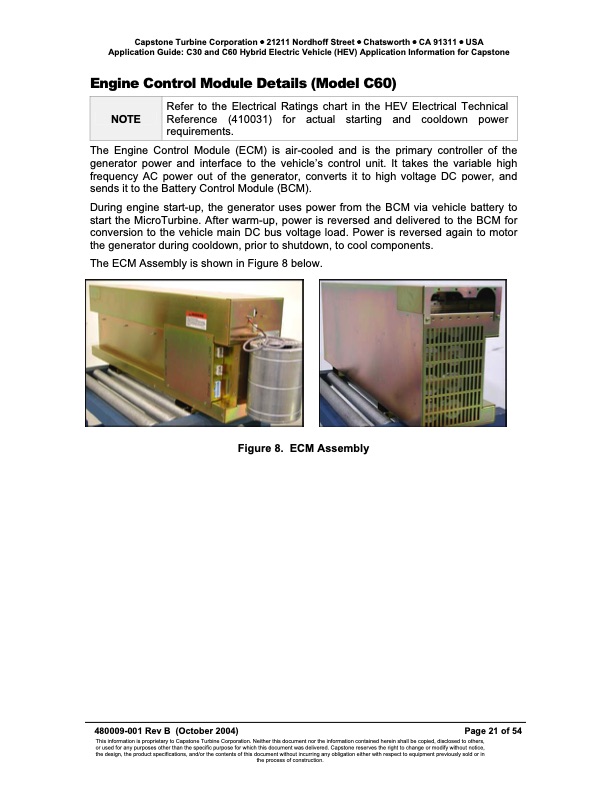

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Engine Control Module Details (Model C60) The Engine Control Module (ECM) is air-cooled and is the primary controller of the generator power and interface to the vehicleís control unit. It takes the variable high frequency AC power out of the generator, converts it to high voltage DC power, and sends it to the Battery Control Module (BCM). During engine start-up, the generator uses power from the BCM via vehicle battery to start the MicroTurbine. After warm-up, power is reversed and delivered to the BCM for conversion to the vehicle main DC bus voltage load. Power is reversed again to motor the generator during cooldown, prior to shutdown, to cool components. The ECM Assembly is shown in Figure 8 below. Figure 8. ECM Assembly NOTE Refer to the Electrical Ratings chart in the HEV Electrical Technical Reference (410031) for actual starting and cooldown power requirements. 480009-001 Rev B (October 2004) Page 21 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
