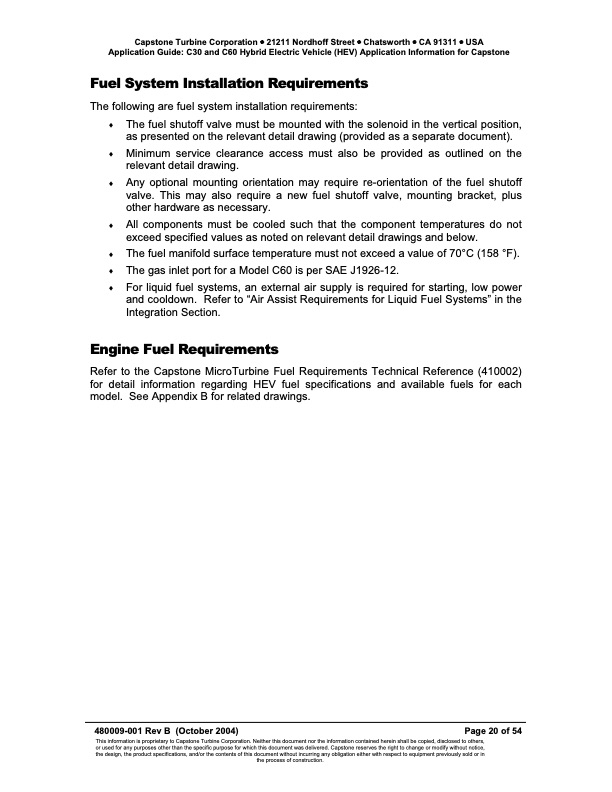

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Fuel System Installation Requirements The following are fuel system installation requirements: ♦ The fuel shutoff valve must be mounted with the solenoid in the vertical position, as presented on the relevant detail drawing (provided as a separate document). ♦ Minimum service clearance access must also be provided as outlined on the relevant detail drawing. ♦ Any optional mounting orientation may require re-orientation of the fuel shutoff valve. This may also require a new fuel shutoff valve, mounting bracket, plus other hardware as necessary. ♦ All components must be cooled such that the component temperatures do not exceed specified values as noted on relevant detail drawings and below. ♦ The fuel manifold surface temperature must not exceed a value of 70°C (158 °F). ♦ The gas inlet port for a Model C60 is per SAE J1926-12. ♦ For liquid fuel systems, an external air supply is required for starting, low power and cooldown. Refer to ìAir Assist Requirements for Liquid Fuel Systemsî in the Integration Section. Engine Fuel Requirements Refer to the Capstone MicroTurbine Fuel Requirements Technical Reference (410002) for detail information regarding HEV fuel specifications and available fuels for each model. See Appendix B for related drawings. 480009-001 Rev B (October 2004) Page 20 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
