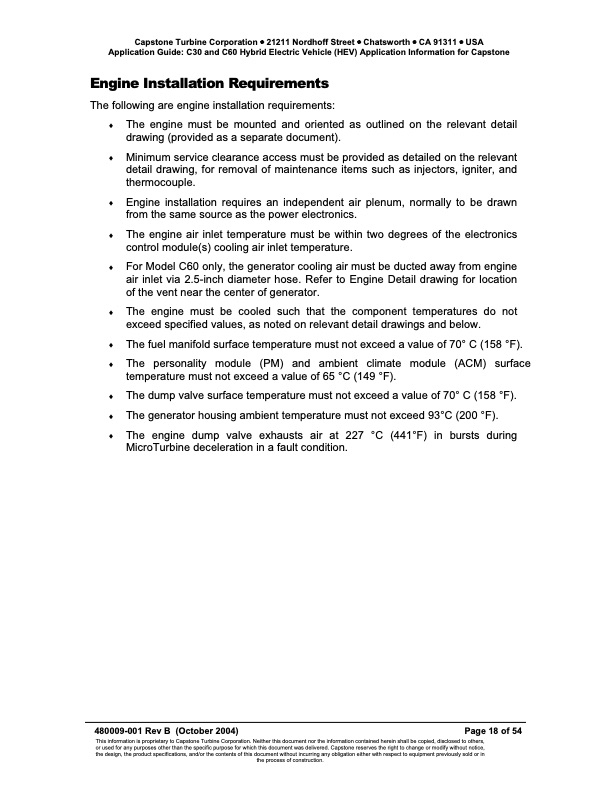

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Engine Installation Requirements The following are engine installation requirements: ♦ The engine must be mounted and oriented as outlined on the relevant detail drawing (provided as a separate document). ♦ Minimum service clearance access must be provided as detailed on the relevant detail drawing, for removal of maintenance items such as injectors, igniter, and thermocouple. ♦ Engine installation requires an independent air plenum, normally to be drawn from the same source as the power electronics. ♦ The engine air inlet temperature must be within two degrees of the electronics control module(s) cooling air inlet temperature. ♦ For Model C60 only, the generator cooling air must be ducted away from engine air inlet via 2.5-inch diameter hose. Refer to Engine Detail drawing for location of the vent near the center of generator. ♦ The engine must be cooled such that the component temperatures do not exceed specified values, as noted on relevant detail drawings and below. ♦ The fuel manifold surface temperature must not exceed a value of 70° C (158 °F). ♦ The personality module (PM) and ambient climate module (ACM) surface temperature must not exceed a value of 65 °C (149 °F). ♦ The dump valve surface temperature must not exceed a value of 70° C (158 °F). ♦ The generator housing ambient temperature must not exceed 93°C (200 °F). ♦ The engine dump valve exhausts air at 227 °C (441°F) in bursts during MicroTurbine deceleration in a fault condition. 480009-001 Rev B (October 2004) Page 18 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
