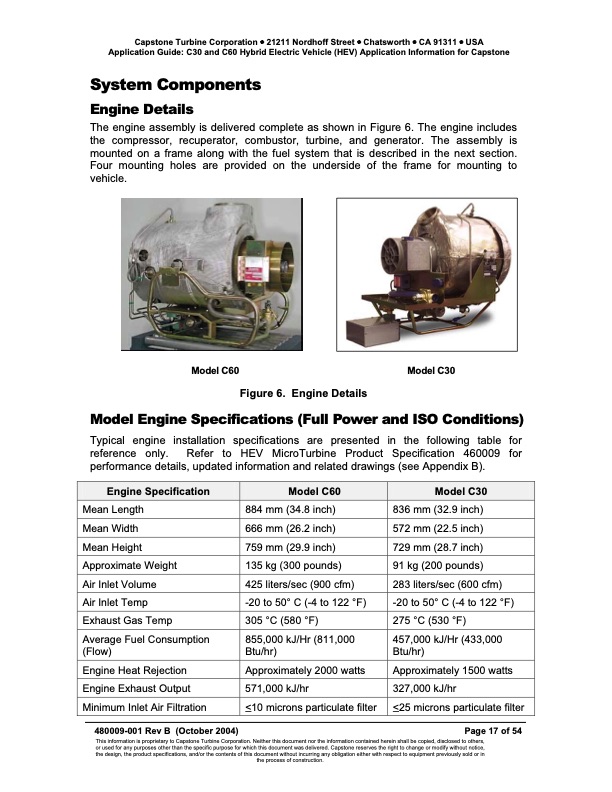

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone System Components Engine Details The engine assembly is delivered complete as shown in Figure 6. The engine includes the compressor, recuperator, combustor, turbine, and generator. The assembly is mounted on a frame along with the fuel system that is described in the next section. Four mounting holes are provided on the underside of the frame for mounting to vehicle. Model C60 Model C30 Figure 6. Engine Details Model Engine Specifications (Full Power and ISO Conditions) Typical engine installation specifications are presented in the following table for reference only. Refer to HEV MicroTurbine Product Specification 460009 for performance details, updated information and related drawings (see Appendix B). Engine Specification Model C60 Model C30 Mean Length Mean Width Mean Height Approximate Weight Air Inlet Volume Air Inlet Temp Exhaust Gas Temp Average Fuel Consumption (Flow) Engine Heat Rejection Engine Exhaust Output Minimum Inlet Air Filtration 480009-001 Rev B (October 2004) 884 mm (34.8 inch) 666 mm (26.2 inch) 759 mm (29.9 inch) 135 kg (300 pounds) 425 liters/sec (900 cfm) -20 to 50° C (-4 to 122 °F) 305 °C (580 °F) 855,000 kJ/Hr (811,000 Btu/hr) Approximately 2000 watts 571,000 kJ/hr <10 microns particulate filter 836 mm (32.9 inch) 572 mm (22.5 inch) 729 mm (28.7 inch) 91 kg (200 pounds) 283 liters/sec (600 cfm) -20 to 50° C (-4 to 122 °F) 275 °C (530 °F) 457,000 kJ/Hr (433,000 Btu/hr) Approximately 1500 watts 327,000 kJ/hr <25 microns particulate filter Page 17 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
