PDF Publication Title:
Text from PDF Page: 006

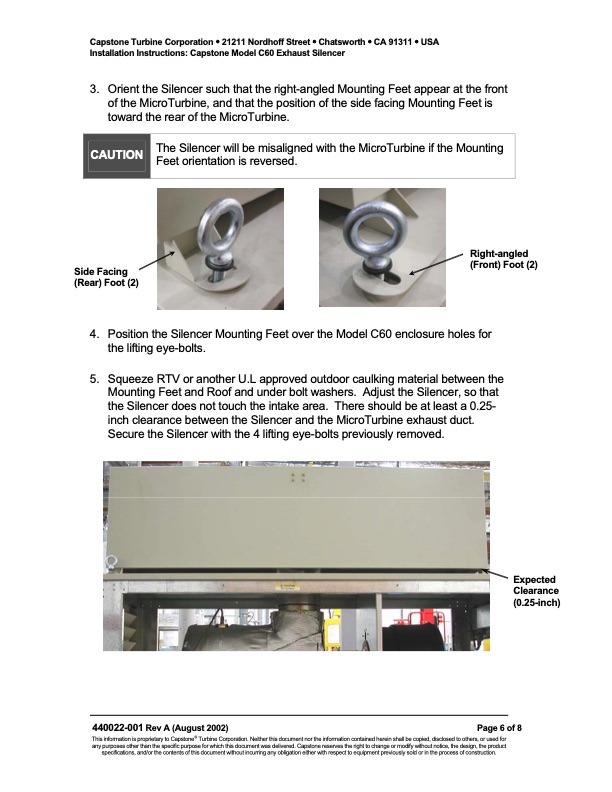

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Installation Instructions: Capstone Model C60 Exhaust Silencer 3. OrienttheSilencersuchthattheright-angledMountingFeetappearatthefront of the MicroTurbine, and that the position of the side facing Mounting Feet is toward the rear of the MicroTurbine. CAUTION The Silencer will be misaligned with the MicroTurbine if the Mounting Feet orientation is reversed. Side Facing (Rear) Foot (2) Right-angled (Front) Foot (2) 4. PositiontheSilencerMountingFeetovertheModelC60enclosureholesfor the lifting eye-bolts. 5. SqueezeRTVoranotherU.Lapprovedoutdoorcaulkingmaterialbetweenthe Mounting Feet and Roof and under bolt washers. Adjust the Silencer, so that the Silencer does not touch the intake area. There should be at least a 0.25- inch clearance between the Silencer and the MicroTurbine exhaust duct. Secure the Silencer with the 4 lifting eye-bolts previously removed. 440022-001 Rev A (August 2002) Expected Clearance (0.25-inch) Page 6 of 8 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Exhaust Silencer Installation - Model C60
PDF Search Title:
Work Instructions Exhaust Silencer Installation - Model C60Original File Name Searched:
440022_Model_C60_Silencer_Installation.pdfDIY PDF Search: Google It | Yahoo | Bing
