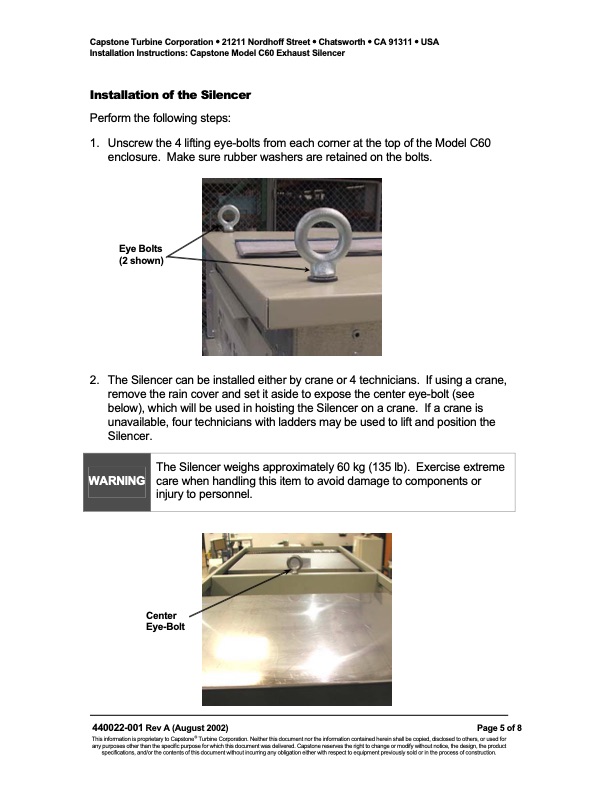

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Installation Instructions: Capstone Model C60 Exhaust Silencer Installation of the Silencer Perform the following steps: 1. Unscrewthe4liftingeye-boltsfromeachcorneratthetopoftheModelC60 enclosure. Make sure rubber washers are retained on the bolts. Eye Bolts (2 shown) 2. The Silencer can be installed either by crane or 4 technicians. If using a crane, remove the rain cover and set it aside to expose the center eye-bolt (see below), which will be used in hoisting the Silencer on a crane. If a crane is unavailable, four technicians with ladders may be used to lift and position the Silencer. WARNING The Silencer weighs approximately 60 kg (135 lb). Exercise extreme care when handling this item to avoid damage to components or injury to personnel. Center Eye-Bolt 440022-001 Rev A (August 2002) Page 5 of 8 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Exhaust Silencer Installation - Model C60
