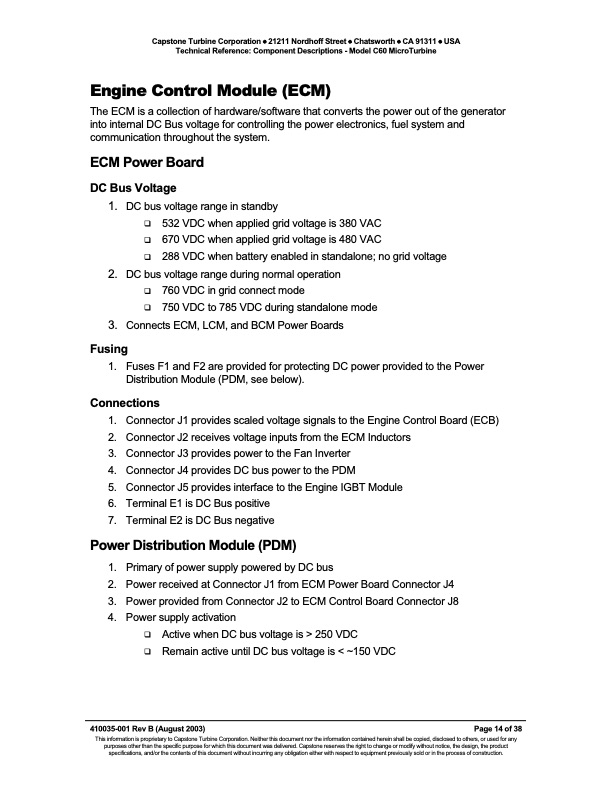

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C60 MicroTurbine Engine Control Module (ECM) The ECM is a collection of hardware/software that converts the power out of the generator into internal DC Bus voltage for controlling the power electronics, fuel system and communication throughout the system. ECM Power Board DC Bus Voltage 1. DCbusvoltagerangeinstandby 532VDCwhenappliedgridvoltageis380VAC 670VDCwhenappliedgridvoltageis480VAC 288VDCwhenbatteryenabledinstandalone;nogridvoltage 2. DCbusvoltagerangeduringnormaloperation 760VDCingridconnectmode 750VDCto785VDCduringstandalonemode 3. ConnectsECM,LCM,andBCMPowerBoards Fusing 1. Fuses F1 and F2 are provided for protecting DC power provided to the Power Distribution Module (PDM, see below). Connections 1. Connector J1 provides scaled voltage signals to the Engine Control Board (ECB) 2. Connector J2 receives voltage inputs from the ECM Inductors 3. Connector J3 provides power to the Fan Inverter 4. Connector J4 provides DC bus power to the PDM 5. Connector J5 provides interface to the Engine IGBT Module 6. Terminal E1 is DC Bus positive 7. Terminal E2 is DC Bus negative Power Distribution Module (PDM) 1. Primary of power supply powered by DC bus 2. Power received at Connector J1 from ECM Power Board Connector J4 3. Power provided from Connector J2 to ECM Control Board Connector J8 4. Power supply activation ActivewhenDCbusvoltageis>250VDC RemainactiveuntilDCbusvoltageis<~150VDC 410035-001 Rev B (August 2003) Page 14 of 38 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C60 MicroTurbine
