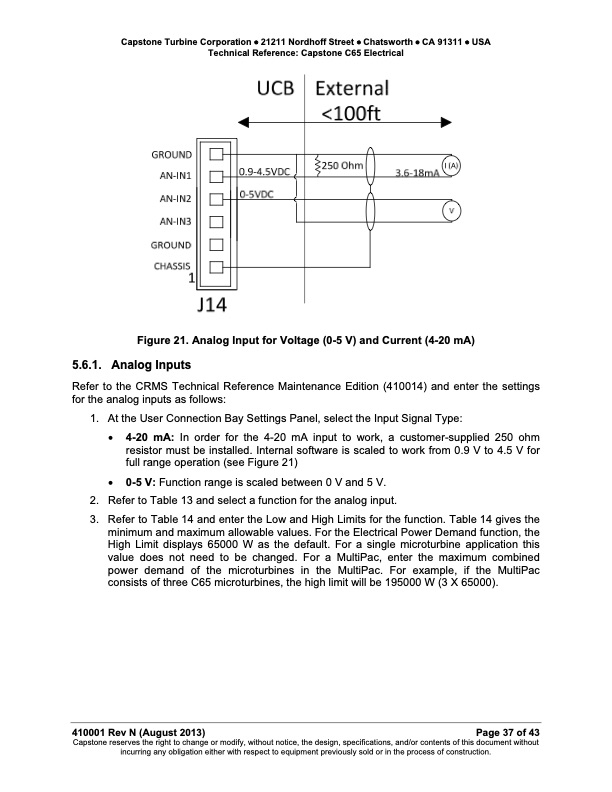

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Figure 21. Analog Input for Voltage (0-5 V) and Current (4-20 mA) 5.6.1. Analog Inputs Refer to the CRMS Technical Reference Maintenance Edition (410014) and enter the settings for the analog inputs as follows: 1. At the User Connection Bay Settings Panel, select the Input Signal Type: 4-20 mA: In order for the 4-20 mA input to work, a customer-supplied 250 ohm resistor must be installed. Internal software is scaled to work from 0.9 V to 4.5 V for full range operation (see Figure 21) 0-5 V: Function range is scaled between 0 V and 5 V. 2. Refer to Table 13 and select a function for the analog input. 3. Refer to Table 14 and enter the Low and High Limits for the function. Table 14 gives the minimum and maximum allowable values. For the Electrical Power Demand function, the High Limit displays 65000 W as the default. For a single microturbine application this value does not need to be changed. For a MultiPac, enter the maximum combined power demand of the microturbines in the MultiPac. For example, if the MultiPac consists of three C65 microturbines, the high limit will be 195000 W (3 X 65000). 410001 Rev N (August 2013) Page 37 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
