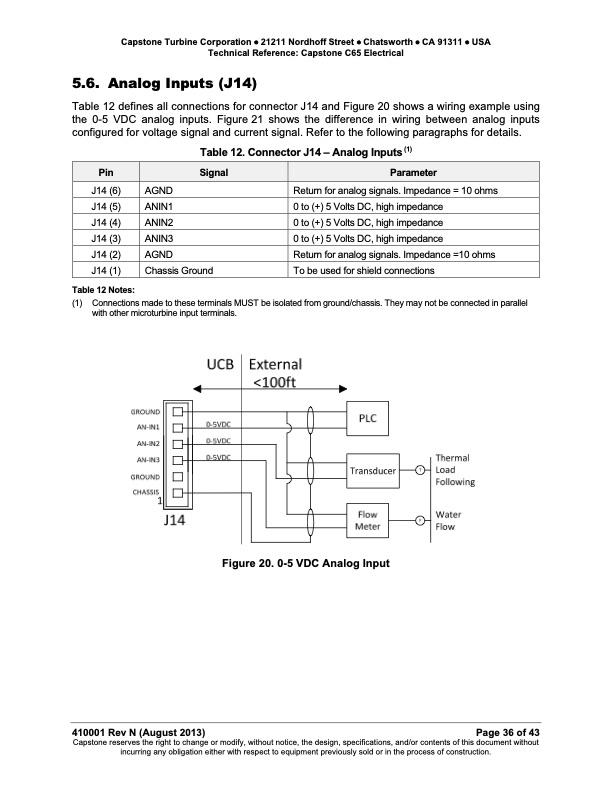

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 5.6. Analog Inputs (J14) Table 12 defines all connections for connector J14 and Figure 20 shows a wiring example using the 0-5 VDC analog inputs. Figure 21 shows the difference in wiring between analog inputs configured for voltage signal and current signal. Refer to the following paragraphs for details. J14 (6) J14 (5) J14 (4) J14 (3) J14 (2) J14 (1) Table 12 Notes: AGND ANIN1 ANIN2 ANIN3 AGND Chassis Ground Return for analog signals. Impedance = 10 ohms 0 to (+) 5 Volts DC, high impedance 0 to (+) 5 Volts DC, high impedance 0 to (+) 5 Volts DC, high impedance Return for analog signals. Impedance =10 ohms To be used for shield connections Table 12. Connector J14 – Analog Inputs (1) Pin Signal Parameter (1) Connections made to these terminals MUST be isolated from ground/chassis. They may not be connected in parallel with other microturbine input terminals. 410001 Rev N (August 2013) Page 36 of 43 Figure 20. 0-5 VDC Analog Input Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
