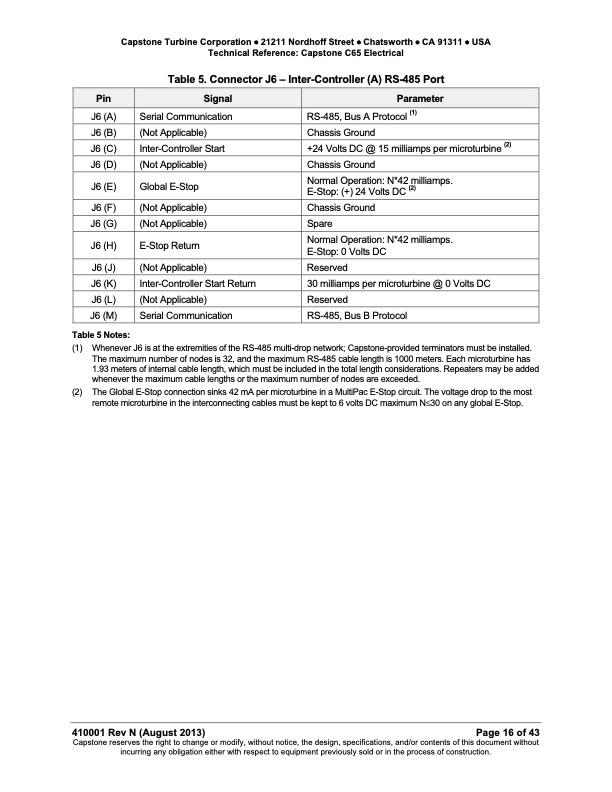

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Table 5. Connector J6 – Inter-Controller (A) RS-485 Port Pin Signal Parameter J6 (A) J6 (B) J6 (C) J6 (D) J6 (E) J6 (F) J6 (G) J6 (H) J6 (J) J6 (K) J6 (L) J6 (M) Table 5 Notes: Serial Communication (Not Applicable) Inter-Controller Start (Not Applicable) Global E-Stop (Not Applicable) (Not Applicable) E-Stop Return (Not Applicable) Inter-Controller Start Return (Not Applicable) Serial Communication RS-485, Bus A Protocol (1) Chassis Ground +24 Volts DC @ 15 milliamps per microturbine (2) Chassis Ground Normal Operation: N*42 milliamps. E-Stop: (+) 24 Volts DC (2) Chassis Ground Spare Normal Operation: N*42 milliamps. E-Stop: 0 Volts DC Reserved 30 milliamps per microturbine @ 0 Volts DC Reserved RS-485, Bus B Protocol (1) Whenever J6 is at the extremities of the RS-485 multi-drop network; Capstone-provided terminators must be installed. The maximum number of nodes is 32, and the maximum RS-485 cable length is 1000 meters. Each microturbine has 1.93 meters of internal cable length, which must be included in the total length considerations. Repeaters may be added whenever the maximum cable lengths or the maximum number of nodes are exceeded. (2) The Global E-Stop connection sinks 42 mA per microturbine in a MultiPac E-Stop circuit. The voltage drop to the most remote microturbine in the interconnecting cables must be kept to 6 volts DC maximum N30 on any global E-Stop. 410001 Rev N (August 2013) Page 16 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
