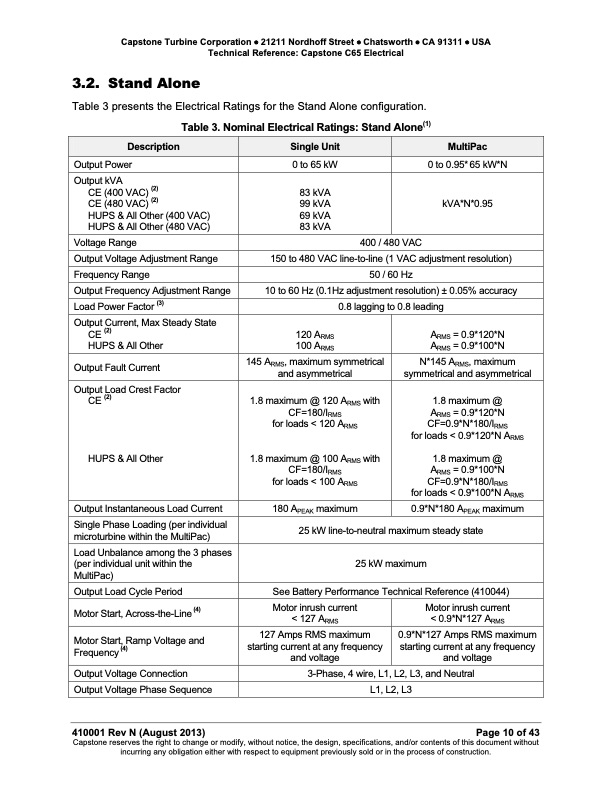

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 3.2. Stand Alone Table 3 presents the Electrical Ratings for the Stand Alone configuration. Table 3. Nominal Electrical Ratings: Stand Alone(1) 0 to 65 kW 0 to 0.95* 65 kW*N 400 / 480 VAC 150 to 480 VAC line-to-line (1 VAC adjustment resolution) 50 / 60 Hz 10 to 60 Hz (0.1Hz adjustment resolution) ± 0.05% accuracy 0.8 lagging to 0.8 leading Description Single Unit MultiPac Output Power Voltage Range Output Voltage Adjustment Range Frequency Range Output Frequency Adjustment Range Load Power Factor (3) Output Current, Max Steady State CE (2) HUPS & All Other Output Fault Current 120 ARMS 100 ARMS 145 ARMS, maximum symmetrical and asymmetrical ARMS = 0.9*120*N ARMS = 0.9*100*N N*145 ARMS, maximum symmetrical and asymmetrical Output kVA CE (400 VAC) (2) CE (480 VAC) (2) HUPS & All Other (400 VAC) HUPS & All Other (480 VAC) 83 kVA 99 kVA 69 kVA 83 kVA kVA*N*0.95 Output Load Crest Factor CE (2) HUPS & All Other 1.8 maximum @ 120 ARMS with CF=180/IRMS for loads < 120 ARMS 1.8 maximum @ 100 ARMS with CF=180/IRMS for loads < 100 ARMS 1.8 maximum @ ARMS = 0.9*120*N CF=0.9*N*180/IRMS for loads < 0.9*120*N ARMS 1.8 maximum @ ARMS = 0.9*100*N CF=0.9*N*180/IRMS for loads < 0.9*100*N ARMS Output Instantaneous Load Current Single Phase Loading (per individual microturbine within the MultiPac) Load Unbalance among the 3 phases (per individual unit within the MultiPac) Output Load Cycle Period Motor Start, Across-the-Line (4) Motor Start, Ramp Voltage and Frequency (4) Output Voltage Connection Output Voltage Phase Sequence 410001 Rev N (August 2013) 180 APEAK maximum 25 kW line-to-neutral maximum steady state 25 kW maximum See Battery Performance Technical Reference (410044) 0.9*N*180 APEAK maximum Motor inrush current < 127 ARMS 127 Amps RMS maximum starting current at any frequency and voltage Motor inrush current < 0.9*N*127 ARMS 0.9*N*127 Amps RMS maximum starting current at any frequency and voltage 3-Phase, 4 wire, L1, L2, L3, and Neutral L1, L2, L3 Page 10 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
PDF Search Title:
Technical Reference Capstone Model C65 ElectricalOriginal File Name Searched:
410001N_TR_C65_ELECTRICAL.pdfDIY PDF Search: Google It | Yahoo | Bing
