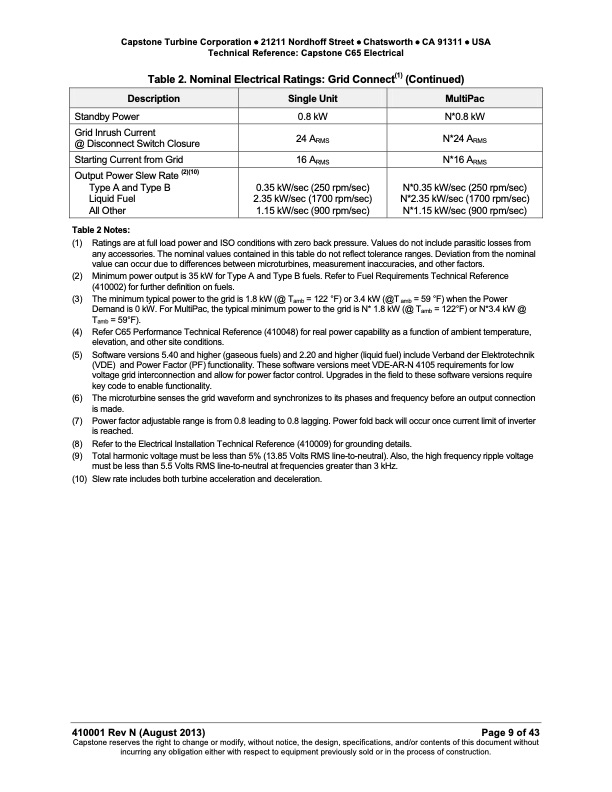

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Table 2. Nominal Electrical Ratings: Grid Connect(1) (Continued) Description Single Unit MultiPac Standby Power Grid Inrush Current @ Disconnect Switch Closure Starting Current from Grid Table 2 Notes: 0.8 kW 24 ARMS 16 ARMS N*0.8 kW N*24 ARMS N*16 ARMS Output Power Slew Rate (2)(10) Type A and Type B Liquid Fuel All Other 0.35 kW/sec (250 rpm/sec) 2.35 kW/sec (1700 rpm/sec) 1.15 kW/sec (900 rpm/sec) N*0.35 kW/sec (250 rpm/sec) N*2.35 kW/sec (1700 rpm/sec) N*1.15 kW/sec (900 rpm/sec) (1) Ratings are at full load power and ISO conditions with zero back pressure. Values do not include parasitic losses from any accessories. The nominal values contained in this table do not reflect tolerance ranges. Deviation from the nominal value can occur due to differences between microturbines, measurement inaccuracies, and other factors. (2) Minimum power output is 35 kW for Type A and Type B fuels. Refer to Fuel Requirements Technical Reference (410002) for further definition on fuels. (3) The minimum typical power to the grid is 1.8 kW (@ Tamb = 122 °F) or 3.4 kW (@T amb = 59 °F) when the Power Demand is 0 kW. For MultiPac, the typical minimum power to the grid is N* 1.8 kW (@ Tamb = 122°F) or N*3.4 kW @ Tamb = 59°F). (4) Refer C65 Performance Technical Reference (410048) for real power capability as a function of ambient temperature, elevation, and other site conditions. (5) Software versions 5.40 and higher (gaseous fuels) and 2.20 and higher (liquid fuel) include Verband der Elektrotechnik (VDE) and Power Factor (PF) functionality. These software versions meet VDE-AR-N 4105 requirements for low voltage grid interconnection and allow for power factor control. Upgrades in the field to these software versions require key code to enable functionality. (6) The microturbine senses the grid waveform and synchronizes to its phases and frequency before an output connection is made. (7) Power factor adjustable range is from 0.8 leading to 0.8 lagging. Power fold back will occur once current limit of inverter is reached. (8) Refer to the Electrical Installation Technical Reference (410009) for grounding details. (9) Total harmonic voltage must be less than 5% (13.85 Volts RMS line-to-neutral). Also, the high frequency ripple voltage must be less than 5.5 Volts RMS line-to-neutral at frequencies greater than 3 kHz. (10) Slewrateincludesbothturbineaccelerationanddeceleration. 410001 Rev N (August 2013) Page 9 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
