Text from PDF Page: 020

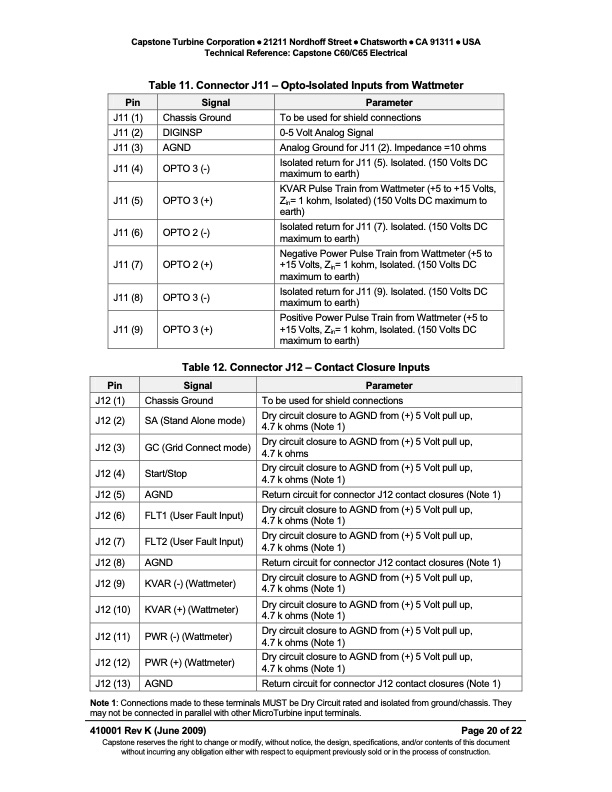

J11 (1) J11 (2) J11 (3) J11 (4) J11 (5) J11 (6) J11 (7) J11 (8) J11 (9) J12 (1) J12 (2) J12 (3) J12 (4) J12 (5) J12 (6) J12 (7) J12 (8) J12 (9) J12 (10) J12 (11) J12 (12) J12 (13) Chassis Ground DIGINSP AGND OPTO 3 (-) OPTO 3 (+) OPTO 2 (-) OPTO 2 (+) OPTO 3 (-) OPTO 3 (+) To be used for shield connections 0-5 Volt Analog Signal Analog Ground for J11 (2). Impedance =10 ohms Isolated return for J11 (5). Isolated. (150 Volts DC maximum to earth) KVAR Pulse Train from Wattmeter (+5 to +15 Volts, Zin= 1 kohm, Isolated) (150 Volts DC maximum to earth) Isolated return for J11 (7). Isolated. (150 Volts DC maximum to earth) Negative Power Pulse Train from Wattmeter (+5 to +15 Volts, Zin= 1 kohm, Isolated. (150 Volts DC maximum to earth) Isolated return for J11 (9). Isolated. (150 Volts DC maximum to earth) Positive Power Pulse Train from Wattmeter (+5 to +15 Volts, Zin= 1 kohm, Isolated. (150 Volts DC maximum to earth) Capstone Turbine Corporation  21211 Nordhoff Street  Chatsworth  CA 91311  USA Technical Reference: Capstone C60/C65 Electrical Table 11. Connector J11 – Opto-Isolated Inputs from Wattmeter Pin Signal Parameter Table 12. Connector J12 – Contact Closure Inputs Pin Signal Parameter Chassis Ground SA (Stand Alone mode) GC (Grid Connect mode) Start/Stop AGND FLT1 (User Fault Input) FLT2 (User Fault Input) AGND KVAR (-) (Wattmeter) KVAR (+) (Wattmeter) PWR (-) (Wattmeter) PWR (+) (Wattmeter) AGND To be used for shield connections Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Return circuit for connector J12 contact closures (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Return circuit for connector J12 contact closures (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Dry circuit closure to AGND from (+) 5 Volt pull up, 4.7 k ohms (Note 1) Return circuit for connector J12 contact closures (Note 1) Note 1: Connections made to these terminals MUST be Dry Circuit rated and isolated from ground/chassis. They may not be connected in parallel with other MicroTurbine input terminals. 410001 Rev K (June 2009) Page 20 of 22 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
