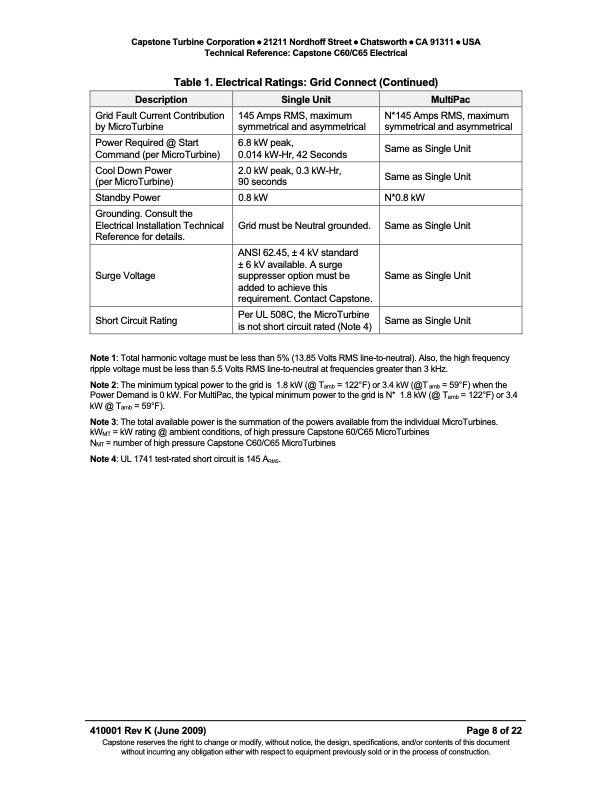

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C60/C65 Electrical Table 1. Electrical Ratings: Grid Connect (Continued) Description Single Unit MultiPac Grid Fault Current Contribution by MicroTurbine Power Required @ Start Command (per MicroTurbine) Cool Down Power (per MicroTurbine) Standby Power Grounding. Consult the Electrical Installation Technical Reference for details. Short Circuit Rating 145 Amps RMS, maximum symmetrical and asymmetrical 6.8 kW peak, 0.014 kW-Hr, 42 Seconds 2.0 kW peak, 0.3 kW-Hr, 90 seconds 0.8 kW Grid must be Neutral grounded. Per UL 508C, the MicroTurbine is not short circuit rated (Note 4) N*145 Amps RMS, maximum symmetrical and asymmetrical Same as Single Unit Same as Single Unit N*0.8 kW Same as Single Unit Same as Single Unit Surge Voltage ANSI 62.45, ± 4 kV standard ± 6 kV available. A surge suppresser option must be added to achieve this requirement. Contact Capstone. Same as Single Unit Note 1: Total harmonic voltage must be less than 5% (13.85 Volts RMS line-to-neutral). Also, the high frequency ripple voltage must be less than 5.5 Volts RMS line-to-neutral at frequencies greater than 3 kHz. Note 2: The minimum typical power to the grid is 1.8 kW (@ Tamb = 122°F) or 3.4 kW (@T amb = 59°F) when the Power Demand is 0 kW. For MultiPac, the typical minimum power to the grid is N* 1.8 kW (@ Tamb = 122°F) or 3.4 kW @ Tamb = 59°F). Note 3: The total available power is the summation of the powers available from the individual MicroTurbines. kWMT = kW rating @ ambient conditions, of high pressure Capstone 60/C65 MicroTurbines NMT = number of high pressure Capstone C60/C65 MicroTurbines Note 4: UL 1741 test-rated short circuit is 145 ARMS. 410001 Rev K (June 2009) Page 8 of 22 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C60/C65 Electrical
