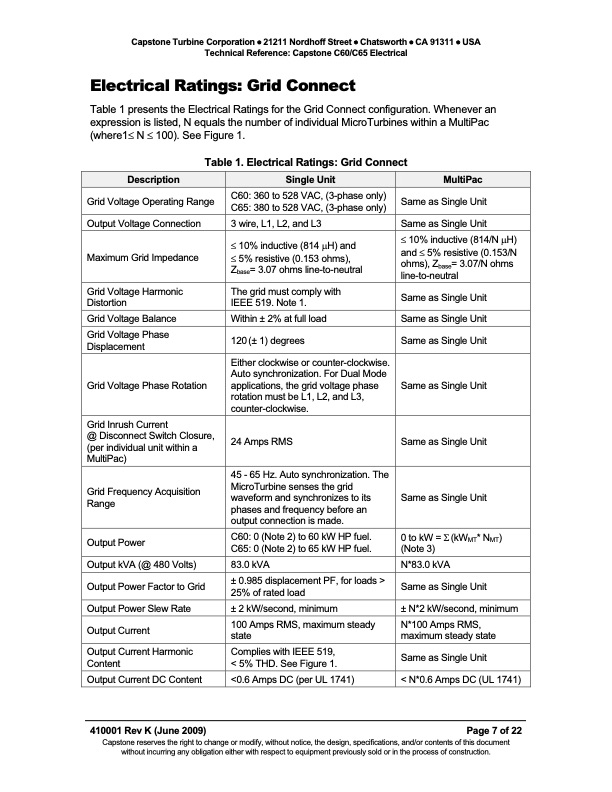

Text from PDF Page: 007
Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C60/C65 Electrical Electrical Ratings: Grid Connect Table 1 presents the Electrical Ratings for the Grid Connect configuration. Whenever an expression is listed, N equals the number of individual MicroTurbines within a MultiPac (where1 N 100). See Figure 1. Table 1. Electrical Ratings: Grid Connect Description Single Unit MultiPac Grid Voltage Operating Range Output Voltage Connection Grid Voltage Harmonic Distortion Grid Voltage Balance Grid Voltage Phase Displacement C60: 360 to 528 VAC, (3-phase only) C65: 380 to 528 VAC, (3-phase only) 3 wire, L1, L2, and L3 The grid must comply with IEEE 519. Note 1. Within ± 2% at full load 120 (± 1) degrees Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Maximum Grid Impedance 10% inductive (814 H) and 5% resistive (0.153 ohms), Zbase= 3.07 ohms line-to-neutral 10% inductive (814/N H) and 5% resistive (0.153/N ohms), Zbase= 3.07/N ohms line-to-neutral Grid Voltage Phase Rotation Either clockwise or counter-clockwise. Auto synchronization. For Dual Mode applications, the grid voltage phase rotation must be L1, L2, and L3, counter-clockwise. Same as Single Unit Grid Inrush Current @ Disconnect Switch Closure, (per individual unit within a MultiPac) 24 Amps RMS Same as Single Unit Grid Frequency Acquisition Range 45 - 65 Hz. Auto synchronization. The MicroTurbine senses the grid waveform and synchronizes to its phases and frequency before an output connection is made. Same as Single Unit Output Power Output kVA (@ 480 Volts) Output Power Factor to Grid Output Power Slew Rate Output Current Output Current Harmonic Content Output Current DC Content 410001 Rev K (June 2009) C60:0(Note2)to60kWHPfuel. C65: 0 (Note 2) to 65 kW HP fuel. 83.0 kVA ± 0.985 displacement PF, for loads > 25% of rated load ± 2 kW/second, minimum 100 Amps RMS, maximum steady state Complies with IEEE 519, < 5% THD. See Figure 1. <0.6 Amps DC (per UL 1741) 0tokW=(kWMT*NMT) (Note 3) N*83.0 kVA Same as Single Unit ± N*2 kW/second, minimum N*100 Amps RMS, maximum steady state Same as Single Unit < N*0.6 Amps DC (UL 1741) Page 7 of 22 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C60/C65 Electrical
