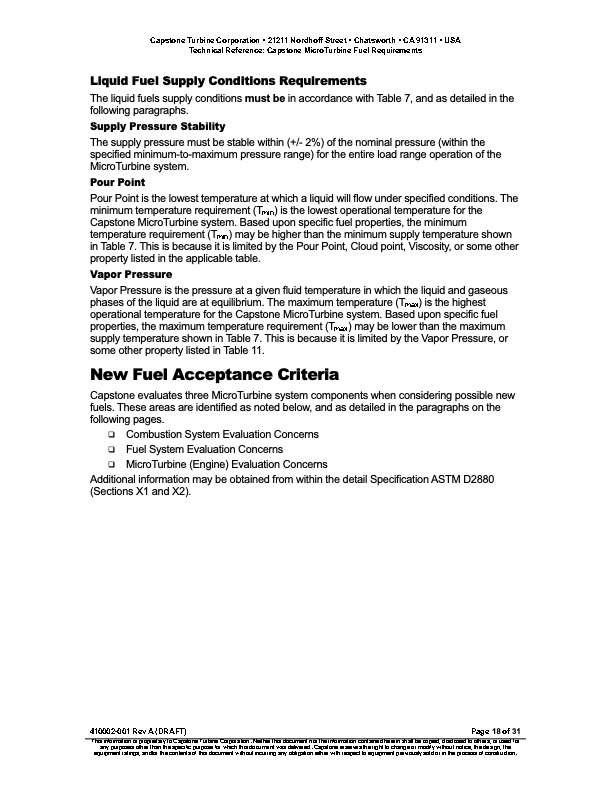

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements Liquid Fuel Supply Conditions Requirements The liquid fuels supply conditions must be in accordance with Table 7, and as detailed in the following paragraphs. Supply Pressure Stability The supply pressure must be stable within (+/- 2%) of the nominal pressure (within the specified minimum-to-maximum pressure range) for the entire load range operation of the MicroTurbine system. Pour Point Pour Point is the lowest temperature at which a liquid will flow under specified conditions. The minimum temperature requirement (Tmin) is the lowest operational temperature for the Capstone MicroTurbine system. Based upon specific fuel properties, the minimum temperature requirement (Tmin) may be higher than the minimum supply temperature shown in Table 7. This is because it is limited by the Pour Point, Cloud point, Viscosity, or some other property listed in the applicable table. Vapor Pressure Vapor Pressure is the pressure at a given fluid temperature in which the liquid and gaseous phases of the liquid are at equilibrium. The maximum temperature (Tmax) is the highest operational temperature for the Capstone MicroTurbine system. Based upon specific fuel properties, the maximum temperature requirement (Tmax) may be lower than the maximum supply temperature shown in Table 7. This is because it is limited by the Vapor Pressure, or some other property listed in Table 11. New Fuel Acceptance Criteria Capstone evaluates three MicroTurbine system components when considering possible new fuels. These areas are identified as noted below, and as detailed in the paragraphs on the following pages. ! CombustionSystemEvaluationConcerns ! FuelSystemEvaluationConcerns ! MicroTurbine(Engine)EvaluationConcerns Additional information may be obtained from within the detail Specification ASTM D2880 (Sections X1 and X2). 410002-001 Rev A (DRAFT) Page 18 of 31 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
