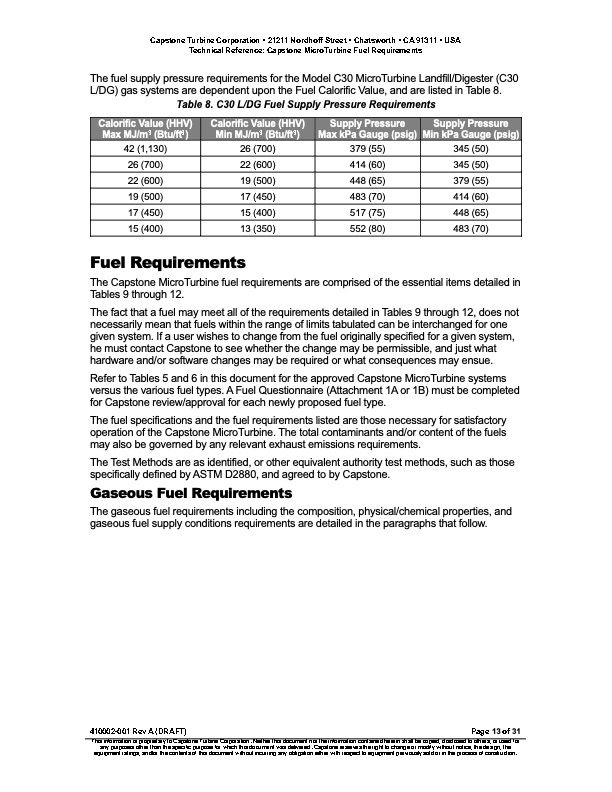

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements The fuel supply pressure requirements for the Model C30 MicroTurbine Landfill/Digester (C30 L/DG) gas systems are dependent upon the Fuel Calorific Value, and are listed in Table 8. Table 8. C30 L/DG Fuel Supply Pressure Requirements Calorific Value (HHV) Max MJ/m3 (Btu/ft3) Calorific Value (HHV) Min MJ/m3 (Btu/ft3) Supply Pressure Max kPa Gauge (psig) Supply Pressure Min kPa Gauge (psig) 42 (1,130) 26 (700) 22 (600) 19 (500) 17 (450) 15 (400) 26 (700) 22 (600) 19 (500) 17 (450) 15 (400) 13 (350) 379 (55) 414 (60) 448 (65) 483 (70) 517 (75) 552 (80) 345 (50) 345 (50) 379 (55) 414 (60) 448 (65) 483 (70) Fuel Requirements The Capstone MicroTurbine fuel requirements are comprised of the essential items detailed in Tables 9 through 12. The fact that a fuel may meet all of the requirements detailed in Tables 9 through 12, does not necessarily mean that fuels within the range of limits tabulated can be interchanged for one given system. If a user wishes to change from the fuel originally specified for a given system, he must contact Capstone to see whether the change may be permissible, and just what hardware and/or software changes may be required or what consequences may ensue. Refer to Tables 5 and 6 in this document for the approved Capstone MicroTurbine systems versus the various fuel types. A Fuel Questionnaire (Attachment 1A or 1B) must be completed for Capstone review/approval for each newly proposed fuel type. The fuel specifications and the fuel requirements listed are those necessary for satisfactory operation of the Capstone MicroTurbine. The total contaminants and/or content of the fuels may also be governed by any relevant exhaust emissions requirements. The Test Methods are as identified, or other equivalent authority test methods, such as those specifically defined by ASTM D2880, and agreed to by Capstone. Gaseous Fuel Requirements The gaseous fuel requirements including the composition, physical/chemical properties, and gaseous fuel supply conditions requirements are detailed in the paragraphs that follow. 410002-001 Rev A (DRAFT) Page 13 of 31 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
