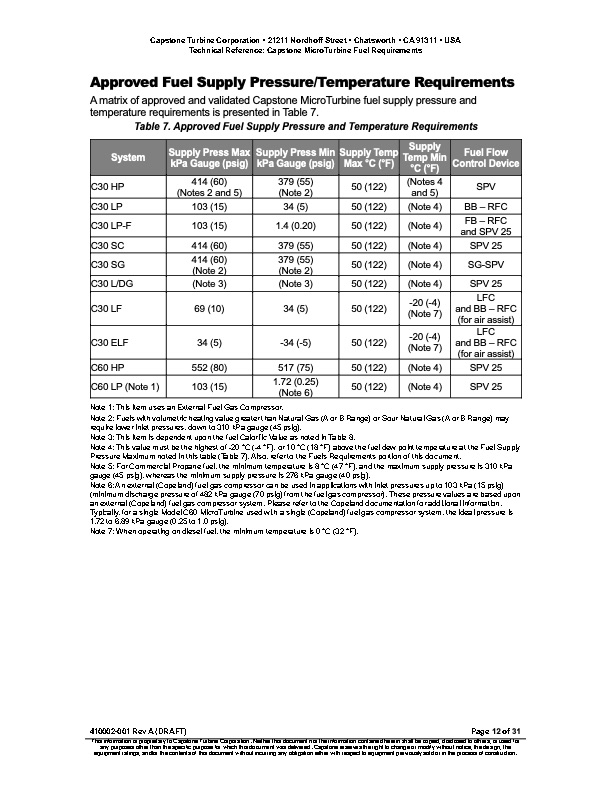

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements Approved Fuel Supply Pressure/Temperature Requirements A matrix of approved and validated Capstone MicroTurbine fuel supply pressure and temperature requirements is presented in Table 7. Table 7. Approved Fuel Supply Pressure and Temperature Requirements System Supply Press Max kPa Gauge (psig) Supply Press Min kPa Gauge (psig) Supply Temp Max °C (°F) Supply Temp Min °C (°F) Fuel Flow Control Device C30 HP C30 LP C30 LP-F C30 SC C30 SG C30 L/DG C30 LF C30 ELF C60 HP C60 LP (Note 1) 414 (60) (Notes 2 and 5) 103 (15) 103 (15) 414 (60) 414 (60) (Note 2) (Note 3) 69 (10) 34 (5) 552 (80) 103 (15) 379 (55) (Note 2) 34 (5) 1.4 (0.20) 379 (55) 379 (55) (Note 2) (Note 3) 34 (5) -34 (-5) 517 (75) 1.72 (0.25) (Note 6) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) 50 (122) (Notes 4 and 5) (Note 4) (Note 4) (Note 4) (Note 4) (Note 4) -20 (-4) (Note 7) -20 (-4) (Note 7) (Note 4) (Note 4) SPV BB–RFC FB–RFC and SPV 25 SPV 25 SG-SPV SPV 25 LFC andBB–RFC (for air assist) LFC andBB–RFC (for air assist) SPV 25 SPV 25 Note 1: This item uses an External Fuel Gas Compressor. Note 2: Fuels with volumetric heating value greater than Natural Gas (A or B Range) or Sour Natural Gas (A or B Range) may require lower inlet pressures, down to 310 kPa gauge (45 psig). Note 3: This item is dependent upon the fuel Calorific Value as noted in Table 8. Note 4: This value must be the highest of -20 °C (-4 °F), or 10 °C (18 °F) above the fuel dew point temperature at the Fuel Supply Pressure Maximum noted in this table (Table 7). Also, refer to the Fuels Requirements portion of this document. Note 5: For Commercial Propane fuel, the minimum temperature is 8 °C (47 °F), and the maximum supply pressure is 310 kPa gauge (45 psig), whereas the minimum supply pressure is 276 kPa gauge (40 psig). Note 6: An external (Copeland) fuel gas compressor can be used in applications with inlet pressures up to 103 kPa (15 psig) (minimum discharge pressure of 482 kPa gauge (70 psig) from the fuel gas compressor). These pressure values are based upon an external (Copeland) fuel gas compressor system. Please refer to the Copeland documentation for additional information. Typically, for a single Model C60 MicroTurbine used with a single (Copeland) fuel gas compressor system, the ideal pressure is 1.72 to 6.89 kPa gauge (0.25 to 1.0 psig). Note 7: When operating on diesel fuel, the minimum temperature is 0 °C (32 °F). 410002-001 Rev A (DRAFT) Page 12 of 31 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
