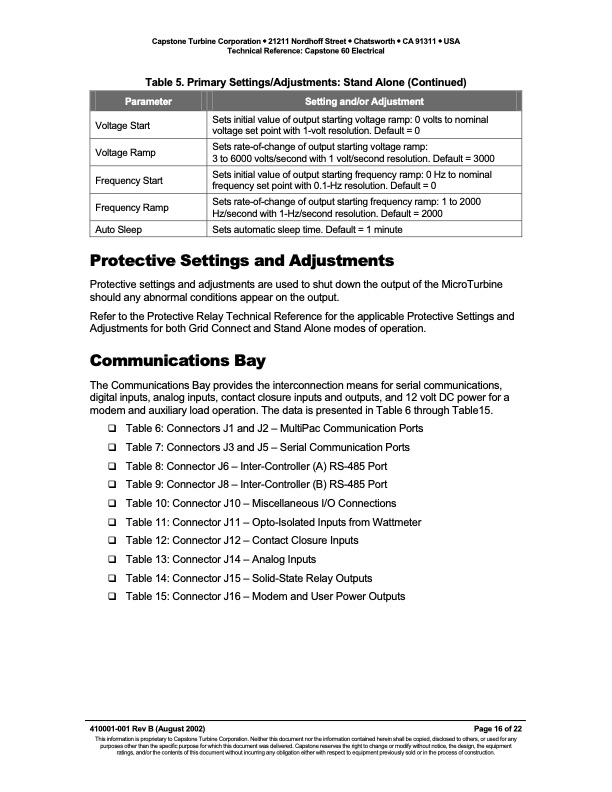

Voltage Start Voltage Ramp Frequency Start Frequency Ramp Auto Sleep Sets initial value of output starting voltage ramp: 0 volts to nominal voltage set point with 1-volt resolution. Default = 0 Sets rate-of-change of output starting voltage ramp: 3 to 6000 volts/second with 1 volt/second resolution. Default = 3000 Sets initial value of output starting frequency ramp: 0 Hz to nominal frequency set point with 0.1-Hz resolution. Default = 0 Sets rate-of-change of output starting frequency ramp: 1 to 2000 Hz/second with 1-Hz/second resolution. Default = 2000 Sets automatic sleep time. Default = 1 minute Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone 60 Electrical Table 5. Primary Settings/Adjustments: Stand Alone (Continued) Parameter Setting and/or Adjustment Protective Settings and Adjustments Protective settings and adjustments are used to shut down the output of the MicroTurbine should any abnormal conditions appear on the output. Refer to the Protective Relay Technical Reference for the applicable Protective Settings and Adjustments for both Grid Connect and Stand Alone modes of operation. Communications Bay The Communications Bay provides the interconnection means for serial communications, digital inputs, analog inputs, contact closure inputs and outputs, and 12 volt DC power for a modem and auxiliary load operation. The data is presented in Table 6 through Table15. Table 6: Connectors J1 and J2 – MultiPac Communication Ports Table 7: Connectors J3 and J5 – Serial Communication Ports Table 8: Connector J6 – Inter-Controller (A) RS-485 Port Table 9: Connector J8 – Inter-Controller (B) RS-485 Port Table 10: Connector J10 – Miscellaneous I/O Connections Table 11: Connector J11 – Opto-Isolated Inputs from Wattmeter Table 12: Connector J12 – Contact Closure Inputs Table 13: Connector J14 – Analog Inputs Table 14: Connector J15 – Solid-State Relay Outputs Table 15: Connector J16 – Modem and User Power Outputs 410001-001 Rev B (August 2002) Page 16 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone 60 Electrical
