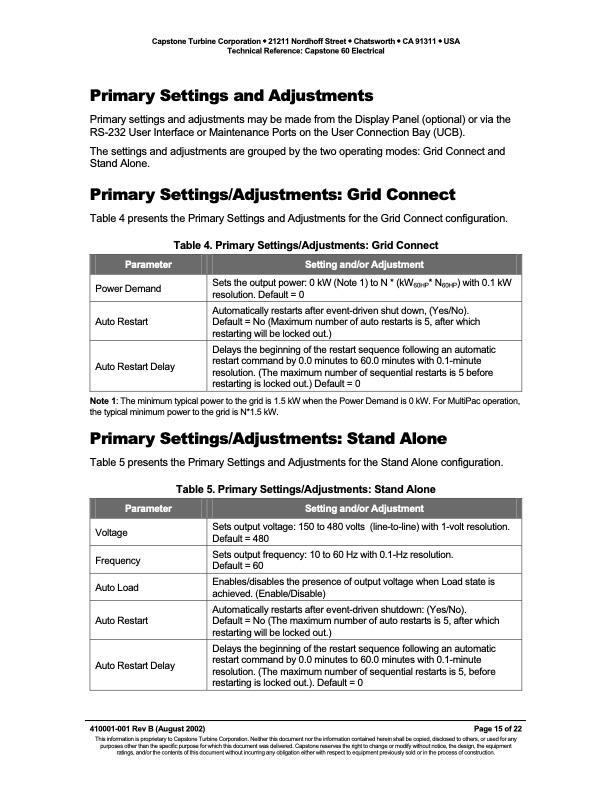

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone 60 Electrical Primary Settings and Adjustments Primary settings and adjustments may be made from the Display Panel (optional) or via the RS-232 User Interface or Maintenance Ports on the User Connection Bay (UCB). The settings and adjustments are grouped by the two operating modes: Grid Connect and Stand Alone. Primary Settings/Adjustments: Grid Connect Table 4 presents the Primary Settings and Adjustments for the Grid Connect configuration. Parameter Setting and/or Adjustment Power Demand Auto Restart Table 4. Primary Settings/Adjustments: Grid Connect Sets the output power: 0 kW (Note 1) to N * (kW60HP* N60HP) with 0.1 kW resolution. Default = 0 Automatically restarts after event-driven shut down, (Yes/No). Default = No (Maximum number of auto restarts is 5, after which restarting will be locked out.) Auto Restart Delay Delays the beginning of the restart sequence following an automatic restart command by 0.0 minutes to 60.0 minutes with 0.1-minute resolution. (The maximum number of sequential restarts is 5 before restarting is locked out.) Default = 0 Note 1: The minimum typical power to the grid is 1.5 kW when the Power Demand is 0 kW. For MultiPac operation, the typical minimum power to the grid is N*1.5 kW. Primary Settings/Adjustments: Stand Alone Table 5 presents the Primary Settings and Adjustments for the Stand Alone configuration. Table 5. Primary Settings/Adjustments: Stand Alone Sets output voltage: 150 to 480 volts (line-to-line) with 1-volt resolution. Default = 480 Sets output frequency: 10 to 60 Hz with 0.1-Hz resolution. Default = 60 Enables/disables the presence of output voltage when Load state is achieved. (Enable/Disable) Automatically restarts after event-driven shutdown: (Yes/No). Default = No (The maximum number of auto restarts is 5, after which restarting will be locked out.) Page 15 of 22 Parameter Setting and/or Adjustment Voltage Frequency Auto Load Auto Restart 410001-001 Rev B (August 2002) Auto Restart Delay Delays the beginning of the restart sequence following an automatic restart command by 0.0 minutes to 60.0 minutes with 0.1-minute resolution. (The maximum number of sequential restarts is 5, before restarting is locked out.). Default = 0 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone 60 Electrical
