PDF Publication Title:
Text from PDF Page: 020

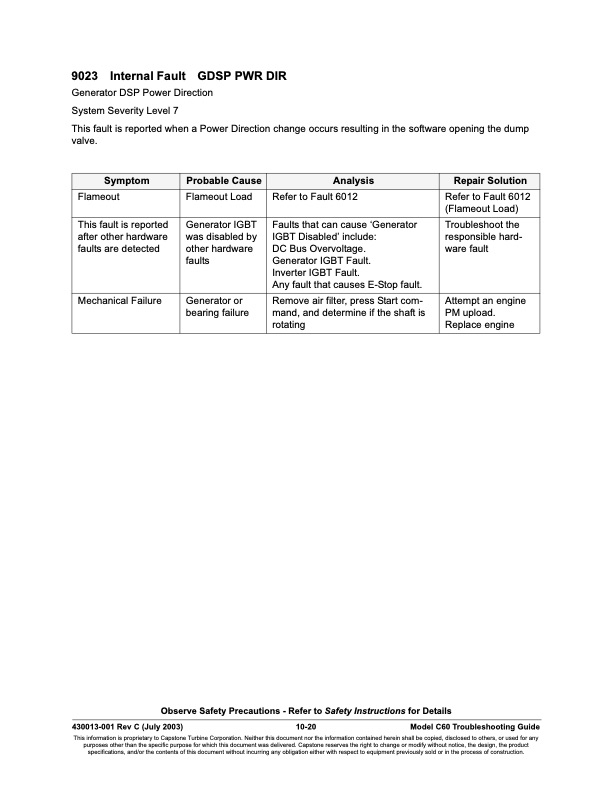

9023 Internal Fault GDSP PWR DIR Generator DSP Power Direction System Severity Level 7 This fault is reported when a Power Direction change occurs resulting in the software opening the dump valve. Symptom Probable Cause Analysis Repair Solution Flameout Flameout Load Refer to Fault 6012 Refer to Fault 6012 (Flameout Load) This fault is reported after other hardware faults are detected Generator IGBT was disabled by other hardware faults Faults that can cause ‘Generator IGBT Disabled’ include: DC Bus Overvoltage. Generator IGBT Fault. Inverter IGBT Fault. Any fault that causes E-Stop fault. Troubleshoot the responsible hard- ware fault Mechanical Failure Generator or bearing failure Remove air filter, press Start com- mand, and determine if the shaft is rotating Attempt an engine PM upload. Replace engine Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 10-20 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 9000 FAULT CODES Generator Faults
PDF Search Title:
Overview SERIES 9000 FAULT CODES Generator FaultsOriginal File Name Searched:
C60_10_9000 Faults.pdfDIY PDF Search: Google It | Yahoo | Bing
