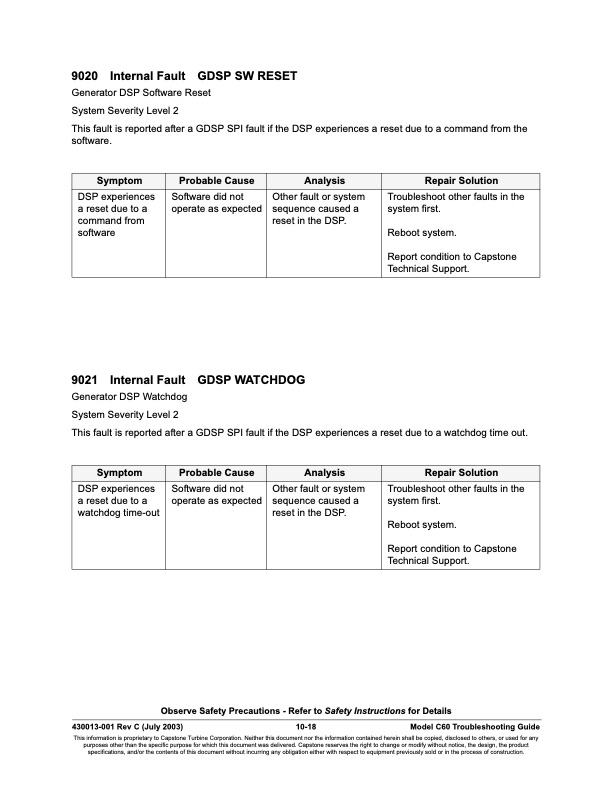

9020 Internal Fault GDSP SW RESET Generator DSP Software Reset System Severity Level 2 This fault is reported after a GDSP SPI fault if the DSP experiences a reset due to a command from the software. Symptom Probable Cause Analysis Repair Solution DSP experiences a reset due to a command from software Software did not operate as expected Other fault or system sequence caused a reset in the DSP. Troubleshoot other faults in the system first. Reboot system. Report condition to Capstone Technical Support. 9021 Internal Fault GDSP WATCHDOG Generator DSP Watchdog System Severity Level 2 This fault is reported after a GDSP SPI fault if the DSP experiences a reset due to a watchdog time out. Symptom Probable Cause Analysis Repair Solution DSP experiences a reset due to a watchdog time-out Software did not operate as expected Other fault or system sequence caused a reset in the DSP. Troubleshoot other faults in the system first. Reboot system. Report condition to Capstone Technical Support. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 10-18 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 9000 FAULT CODES Generator Faults
