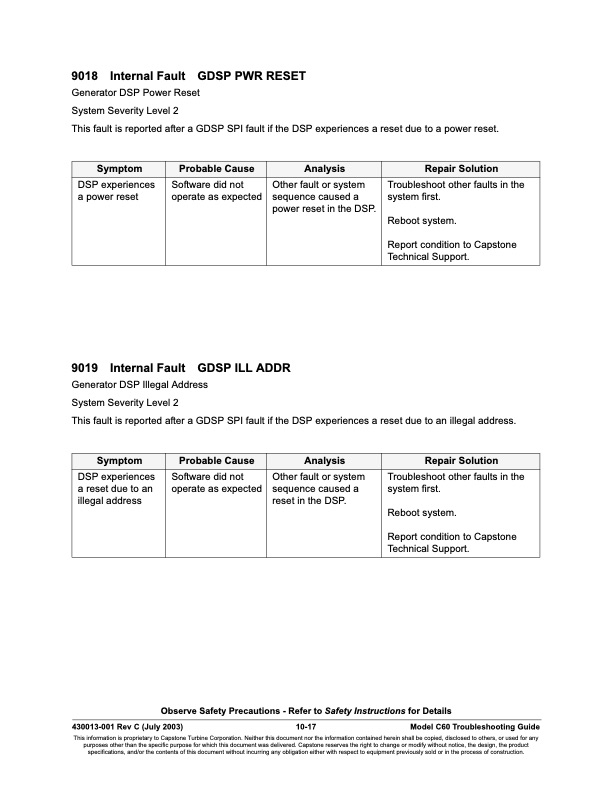

9018 Internal Fault GDSP PWR RESET Generator DSP Power Reset System Severity Level 2 This fault is reported after a GDSP SPI fault if the DSP experiences a reset due to a power reset. Symptom Probable Cause Analysis Repair Solution DSP experiences a power reset Software did not operate as expected Other fault or system sequence caused a power reset in the DSP. Troubleshoot other faults in the system first. Reboot system. Report condition to Capstone Technical Support. 9019 Internal Fault GDSP ILL ADDR Generator DSP Illegal Address System Severity Level 2 This fault is reported after a GDSP SPI fault if the DSP experiences a reset due to an illegal address. Symptom Probable Cause Analysis Repair Solution DSP experiences a reset due to an illegal address Software did not operate as expected Other fault or system sequence caused a reset in the DSP. Troubleshoot other faults in the system first. Reboot system. Report condition to Capstone Technical Support. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 10-17 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 9000 FAULT CODES Generator Faults
PDF Search Title:
Overview SERIES 9000 FAULT CODES Generator FaultsOriginal File Name Searched:
