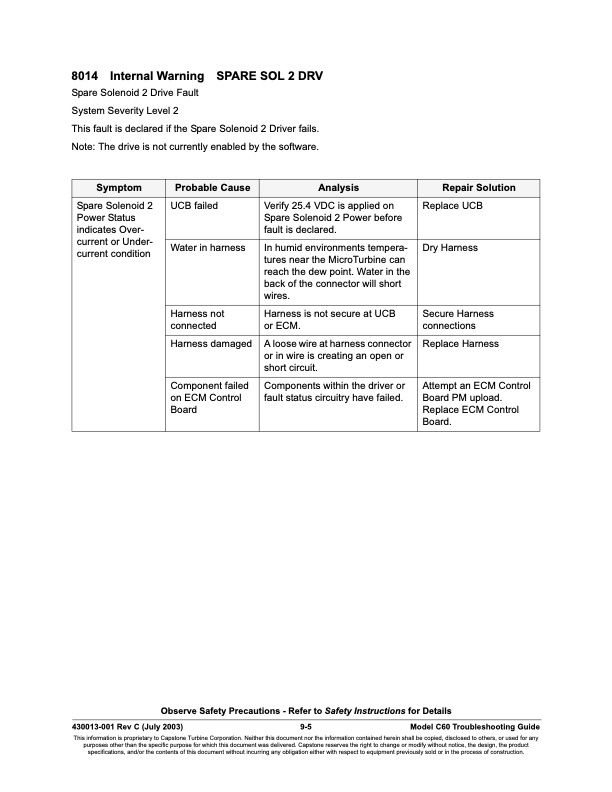

8014 Internal Warning SPARE SOL 2 DRV Spare Solenoid 2 Drive Fault System Severity Level 2 This fault is declared if the Spare Solenoid 2 Driver fails. Note: The drive is not currently enabled by the software. Symptom Probable Cause Analysis Repair Solution Spare Solenoid 2 Power Status indicates Over- current or Under- current condition UCB failed Verify 25.4 VDC is applied on Spare Solenoid 2 Power before fault is declared. Replace UCB Water in harness In humid environments tempera- tures near the MicroTurbine can reach the dew point. Water in the back of the connector will short wires. Dry Harness Harness not connected Harness is not secure at UCB or ECM. Secure Harness connections Harness damaged A loose wire at harness connector or in wire is creating an open or short circuit. Replace Harness Component failed on ECM Control Board Components within the driver or fault status circuitry have failed. Attempt an ECM Control Board PM upload. Replace ECM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 9-5 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
