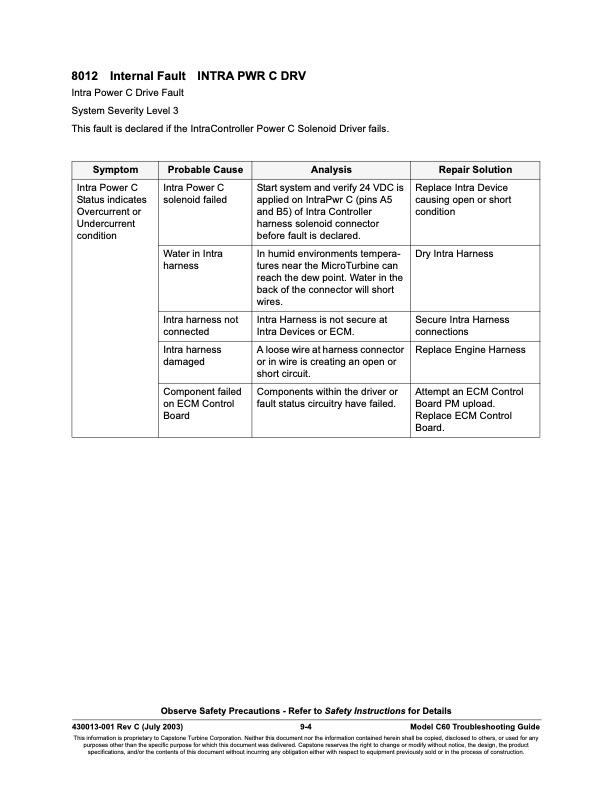

8012 Internal Fault INTRA PWR C DRV Intra Power C Drive Fault System Severity Level 3 This fault is declared if the IntraController Power C Solenoid Driver fails. Symptom Probable Cause Analysis Repair Solution Intra Power C Status indicates Overcurrent or Undercurrent condition Intra Power C solenoid failed Start system and verify 24 VDC is applied on IntraPwr C (pins A5 and B5) of Intra Controller harness solenoid connector before fault is declared. Replace Intra Device causing open or short condition Water in Intra harness In humid environments tempera- tures near the MicroTurbine can reach the dew point. Water in the back of the connector will short wires. Dry Intra Harness Intra harness not connected Intra Harness is not secure at Intra Devices or ECM. Secure Intra Harness connections Intra harness damaged A loose wire at harness connector or in wire is creating an open or short circuit. Replace Engine Harness Component failed on ECM Control Board Components within the driver or fault status circuitry have failed. Attempt an ECM Control Board PM upload. Replace ECM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 9-4 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 8000 FAULT CODES Solenoid Faults
