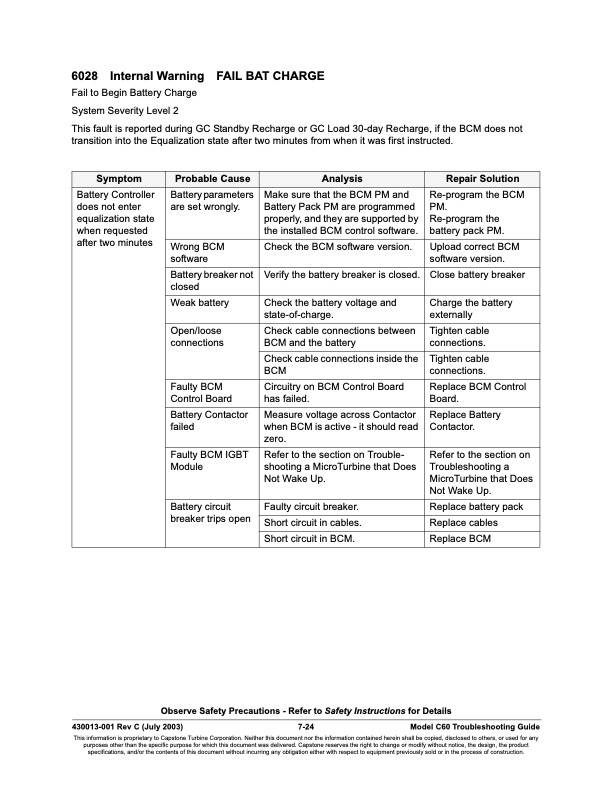

6028 Internal Warning FAIL BAT CHARGE Fail to Begin Battery Charge System Severity Level 2 This fault is reported during GC Standby Recharge or GC Load 30-day Recharge, if the BCM does not transition into the Equalization state after two minutes from when it was first instructed. Symptom Probable Cause Analysis Repair Solution Battery Controller does not enter equalization state when requested after two minutes Battery parameters are set wrongly. Make sure that the BCM PM and Battery Pack PM are programmed properly, and they are supported by the installed BCM control software. Re-program the BCM PM. Re-program the battery pack PM. Wrong BCM software Check the BCM software version. Upload correct BCM software version. Battery breaker not closed Verify the battery breaker is closed. Close battery breaker Weak battery Check the battery voltage and state-of-charge. Charge the battery externally Open/loose connections Check cable connections between BCM and the battery Tighten cable connections. Check cable connections inside the BCM Tighten cable connections. Faulty BCM Control Board Circuitry on BCM Control Board has failed. Replace BCM Control Board. Battery Contactor failed Measure voltage across Contactor when BCM is active - it should read zero. Replace Battery Contactor. Faulty BCM IGBT Module Refer to the section on Trouble- shooting a MicroTurbine that Does Not Wake Up. Refer to the section on Troubleshooting a MicroTurbine that Does Not Wake Up. Battery circuit breaker trips open Faulty circuit breaker. Replace battery pack Short circuit in cables. Replace cables Short circuit in BCM. Replace BCM Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 7-24 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 6000 FAULT CODES Operational Faults
