PDF Publication Title:
Text from PDF Page: 007

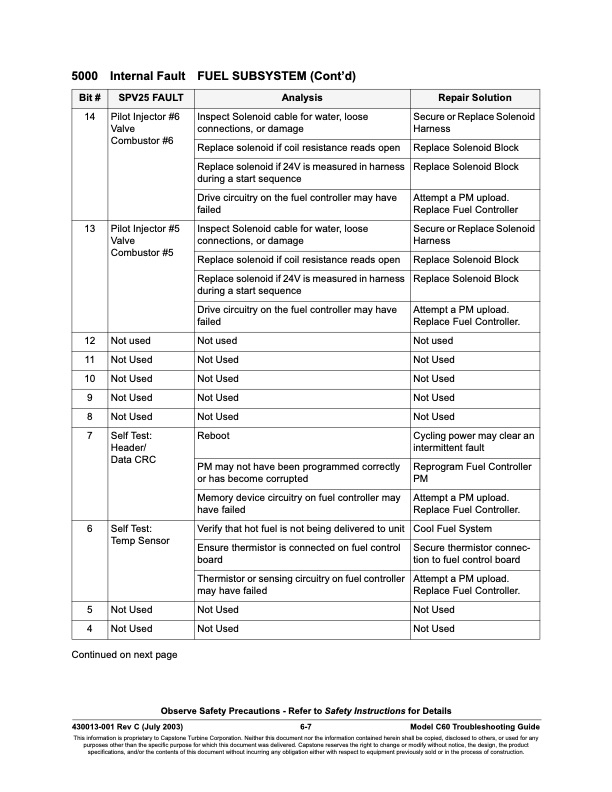

5000 Internal Fault FUEL SUBSYSTEM (Cont’d) Bit # SPV25 FAULT Analysis Repair Solution 14 Pilot Injector #6 Valve Combustor #6 Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open Replace Solenoid Block Replace solenoid if 24V is measured in harness during a start sequence Replace Solenoid Block Drive circuitry on the fuel controller may have failed Attempt a PM upload. Replace Fuel Controller 13 Pilot Injector #5 Valve Combustor #5 Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open Replace Solenoid Block Replace solenoid if 24V is measured in harness during a start sequence Replace Solenoid Block Drive circuitry on the fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 12 Not used Not used Not used 11 Not Used Not Used Not Used 10 Not Used Not Used Not Used 9 Not Used Not Used Not Used 8 Not Used Not Used Not Used 7 Self Test: Header/ Data CRC Reboot Cycling power may clear an intermittent fault PM may not have been programmed correctly or has become corrupted Reprogram Fuel Controller PM Memory device circuitry on fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 6 Self Test: Temp Sensor Verify that hot fuel is not being delivered to unit Cool Fuel System Ensure thermistor is connected on fuel control board Secure thermistor connec- tion to fuel control board Thermistor or sensing circuitry on fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 5 Not Used Not Used Not Used 4 Not Used Not Used Not Used Continued on next page Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 6-7 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
PDF Search Title:
Overview SERIES 5000 FAULT CODES Package FaultsOriginal File Name Searched:
C60_06_5000 Faults.pdfDIY PDF Search: Google It | Yahoo | Bing
