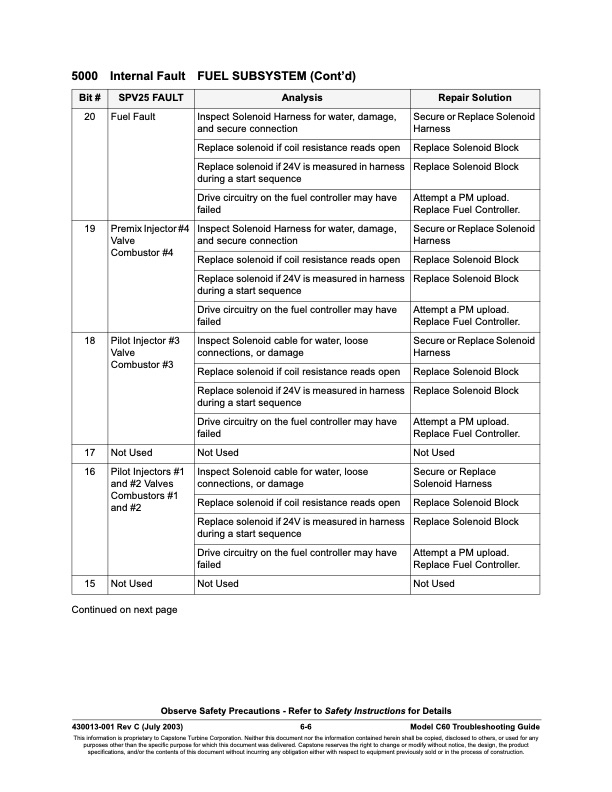

5000 Internal Fault FUEL SUBSYSTEM (Cont’d) Bit # SPV25 FAULT Analysis Repair Solution 20 Fuel Fault Inspect Solenoid Harness for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open Replace Solenoid Block Replace solenoid if 24V is measured in harness during a start sequence Replace Solenoid Block Drive circuitry on the fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 19 Premix Injector #4 Valve Combustor #4 Inspect Solenoid Harness for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open Replace Solenoid Block Replace solenoid if 24V is measured in harness during a start sequence Replace Solenoid Block Drive circuitry on the fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 18 Pilot Injector #3 Valve Combustor #3 Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open Replace Solenoid Block Replace solenoid if 24V is measured in harness during a start sequence Replace Solenoid Block Drive circuitry on the fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 17 Not Used Not Used Not Used 16 Pilot Injectors #1 and #2 Valves Combustors #1 and #2 Inspect Solenoid cable for water, loose connections, or damage Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open Replace Solenoid Block Replace solenoid if 24V is measured in harness during a start sequence Replace Solenoid Block Drive circuitry on the fuel controller may have failed Attempt a PM upload. Replace Fuel Controller. 15 Not Used Not Used Not Used Continued on next page Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 6-6 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
