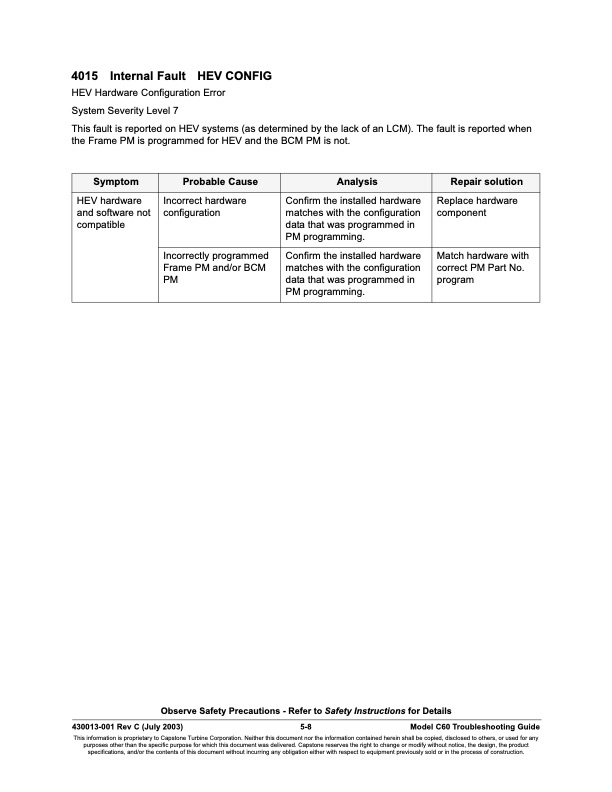

4015 Internal Fault HEV CONFIG HEV Hardware Configuration Error System Severity Level 7 This fault is reported on HEV systems (as determined by the lack of an LCM). The fault is reported when the Frame PM is programmed for HEV and the BCM PM is not. Symptom Probable Cause Analysis Repair solution HEV hardware and software not compatible Incorrect hardware configuration Confirm the installed hardware matches with the configuration data that was programmed in PM programming. Replace hardware component Incorrectly programmed Frame PM and/or BCM PM Confirm the installed hardware matches with the configuration data that was programmed in PM programming. Match hardware with correct PM Part No. program Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 5-8 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 4000 FAULT CODES Software Faults
