Text from PDF Page: 018

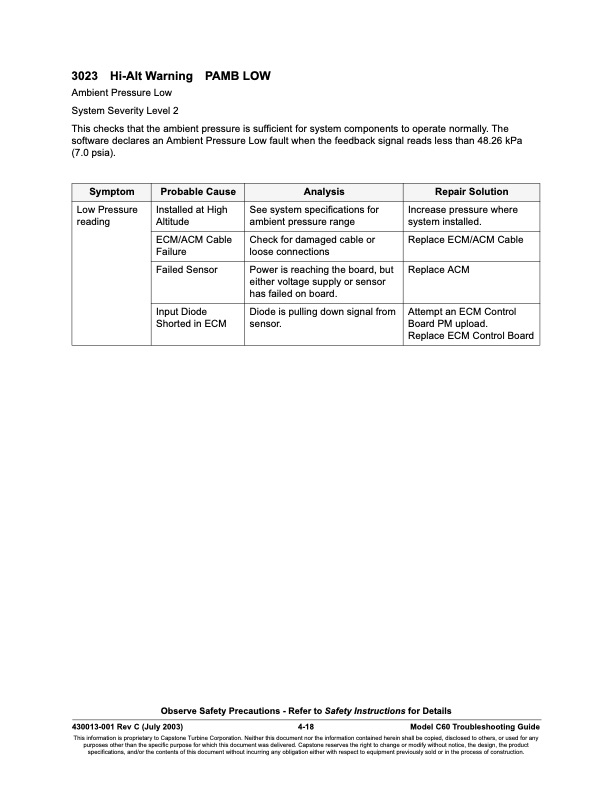

3023 Hi-Alt Warning PAMB LOW Ambient Pressure Low System Severity Level 2 This checks that the ambient pressure is sufficient for system components to operate normally. The software declares an Ambient Pressure Low fault when the feedback signal reads less than 48.26 kPa (7.0 psia). Symptom Probable Cause Analysis Repair Solution Low Pressure reading Installed at High Altitude See system specifications for ambient pressure range Increase pressure where system installed. ECM/ACM Cable Failure Check for damaged cable or loose connections Replace ECM/ACM Cable Failed Sensor Power is reaching the board, but either voltage supply or sensor has failed on board. Replace ACM Input Diode Shorted in ECM Diode is pulling down signal from sensor. Attempt an ECM Control Board PM upload. Replace ECM Control Board Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 4-18 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 3000 FAULT CODES Sensor Faults
