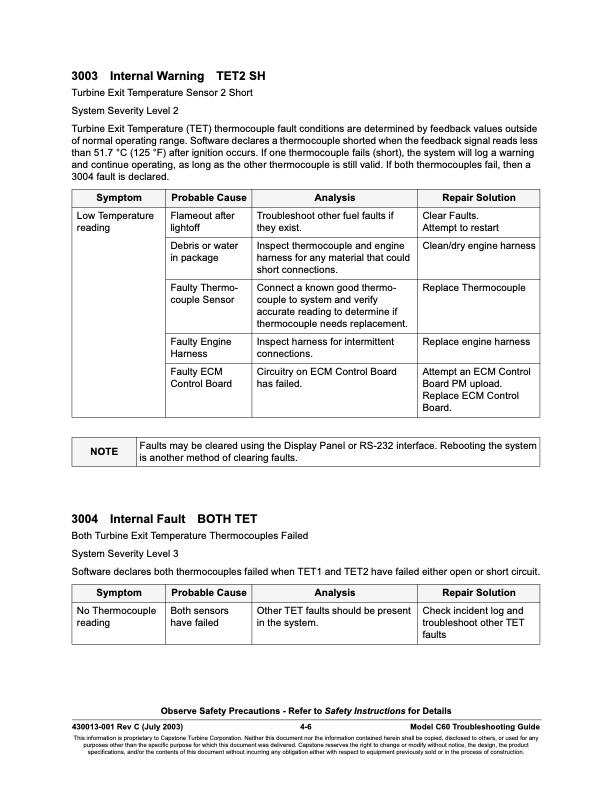

Text from PDF Page: 006
3003 Internal Warning TET2 SH Turbine Exit Temperature Sensor 2 Short System Severity Level 2 Turbine Exit Temperature (TET) thermocouple fault conditions are determined by feedback values outside of normal operating range. Software declares a thermocouple shorted when the feedback signal reads less than 51.7 °C (125 °F) after ignition occurs. If one thermocouple fails (short), the system will log a warning and continue operating, as long as the other thermocouple is still valid. If both thermocouples fail, then a 3004 fault is declared. Symptom Probable Cause Analysis Repair Solution Low Temperature reading Flameout after lightoff Troubleshoot other fuel faults if they exist. Clear Faults. Attempt to restart Debris or water in package Inspect thermocouple and engine harness for any material that could short connections. Clean/dry engine harness Faulty Thermo- couple Sensor Connect a known good thermo- couple to system and verify accurate reading to determine if thermocouple needs replacement. Replace Thermocouple Faulty Engine Harness Inspect harness for intermittent connections. Replace engine harness Faulty ECM Control Board Circuitry on ECM Control Board has failed. Attempt an ECM Control Board PM upload. Replace ECM Control Board. NOTE Faults may be cleared using the Display Panel or RS-232 interface. Rebooting the system is another method of clearing faults. 3004 Internal Fault BOTH TET Both Turbine Exit Temperature Thermocouples Failed System Severity Level 3 Software declares both thermocouples failed when TET1 and TET2 have failed either open or short circuit. Symptom Probable Cause Analysis Repair Solution No Thermocouple reading Both sensors have failed Other TET faults should be present in the system. Check incident log and troubleshoot other TET faults Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 4-6 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 3000 FAULT CODES Sensor Faults
