Text from PDF Page: 011

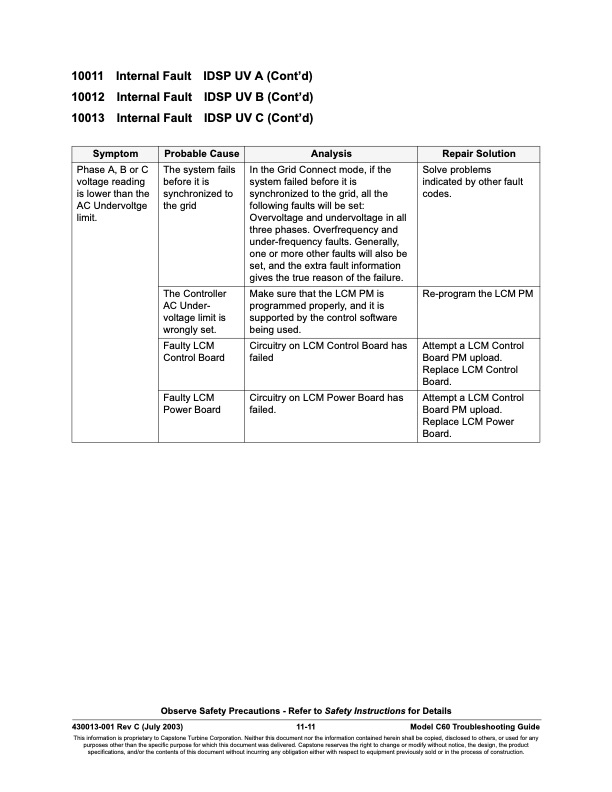

10011 Internal Fault 10012 Internal Fault 10013 Internal Fault IDSP UV A (Cont’d) IDSP UV B (Cont’d) IDSP UV C (Cont’d) Symptom Probable Cause Analysis Repair Solution Phase A, B or C voltage reading is lower than the AC Undervoltge limit. The system fails before it is synchronized to the grid In the Grid Connect mode, if the system failed before it is synchronized to the grid, all the following faults will be set: Overvoltage and undervoltage in all three phases. Overfrequency and under-frequency faults. Generally, one or more other faults will also be set, and the extra fault information gives the true reason of the failure. Solve problems indicated by other fault codes. The Controller AC Under- voltage limit is wrongly set. Make sure that the LCM PM is programmed properly, and it is supported by the control software being used. Re-program the LCM PM Faulty LCM Control Board Circuitry on LCM Control Board has failed Attempt a LCM Control Board PM upload. Replace LCM Control Board. Faulty LCM Power Board Circuitry on LCM Power Board has failed. Attempt a LCM Control Board PM upload. Replace LCM Power Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-11 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
PDF Search Title:
Overview SERIES 10000 FAULT CODES Inverter FaultsOriginal File Name Searched:
