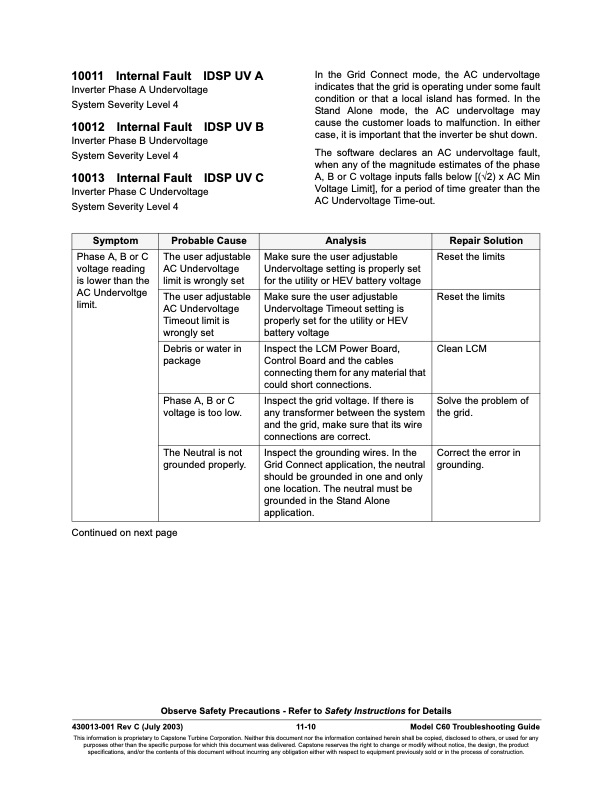

10011 Internal Fault IDSP UV A Inverter Phase A Undervoltage System Severity Level 4 In the Grid Connect mode, the AC undervoltage indicates that the grid is operating under some fault condition or that a local island has formed. In the Stand Alone mode, the AC undervoltage may cause the customer loads to malfunction. In either case, it is important that the inverter be shut down. The software declares an AC undervoltage fault, when any of the magnitude estimates of the phase A, B or C voltage inputs falls below [(√2) x AC Min Voltage Limit], for a period of time greater than the AC Undervoltage Time-out. 10012 Internal Fault IDSP UV B Inverter Phase B Undervoltage System Severity Level 4 10013 Internal Fault IDSP UV C Inverter Phase C Undervoltage System Severity Level 4 Symptom Probable Cause Analysis Repair Solution Phase A, B or C voltage reading is lower than the AC Undervoltge limit. The user adjustable AC Undervoltage limit is wrongly set Make sure the user adjustable Undervoltage setting is properly set for the utility or HEV battery voltage Reset the limits The user adjustable AC Undervoltage Timeout limit is wrongly set Make sure the user adjustable Undervoltage Timeout setting is properly set for the utility or HEV battery voltage Reset the limits Debris or water in package Inspect the LCM Power Board, Control Board and the cables connecting them for any material that could short connections. Clean LCM Phase A, B or C voltage is too low. Inspect the grid voltage. If there is any transformer between the system and the grid, make sure that its wire connections are correct. Solve the problem of the grid. The Neutral is not grounded properly. Inspect the grounding wires. In the Grid Connect application, the neutral should be grounded in one and only one location. The neutral must be grounded in the Stand Alone application. Correct the error in grounding. Continued on next page Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-10 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
