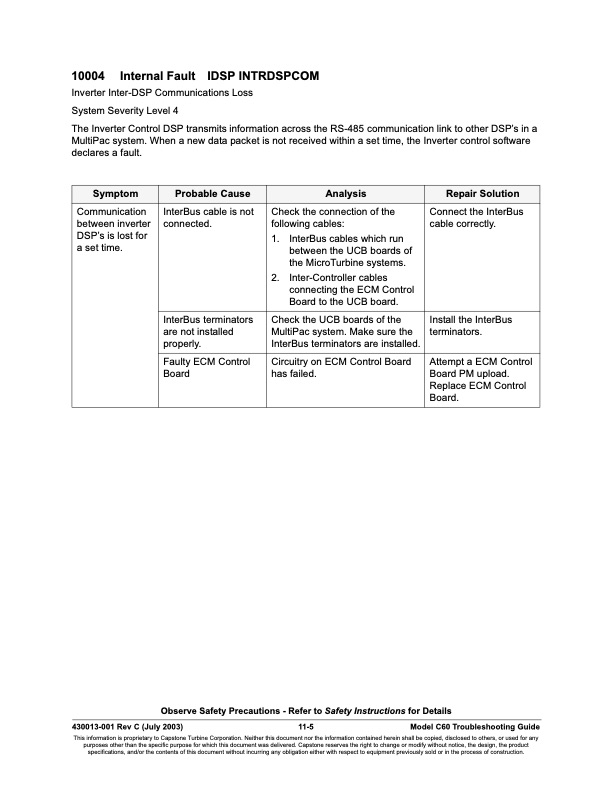

10004 Internal Fault IDSP INTRDSPCOM Inverter Inter-DSP Communications Loss System Severity Level 4 The Inverter Control DSP transmits information across the RS-485 communication link to other DSP’s in a MultiPac system. When a new data packet is not received within a set time, the Inverter control software declares a fault. Symptom Probable Cause Analysis Repair Solution Communication between inverter DSP’s is lost for a set time. InterBus cable is not connected. Check the connection of the following cables: 1. InterBus cables which run between the UCB boards of the MicroTurbine systems. 2. Inter-Controller cables connecting the ECM Control Board to the UCB board. Connect the InterBus cable correctly. InterBus terminators are not installed properly. Check the UCB boards of the MultiPac system. Make sure the InterBus terminators are installed. Install the InterBus terminators. Faulty ECM Control Board Circuitry on ECM Control Board has failed. Attempt a ECM Control Board PM upload. Replace ECM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-5 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
