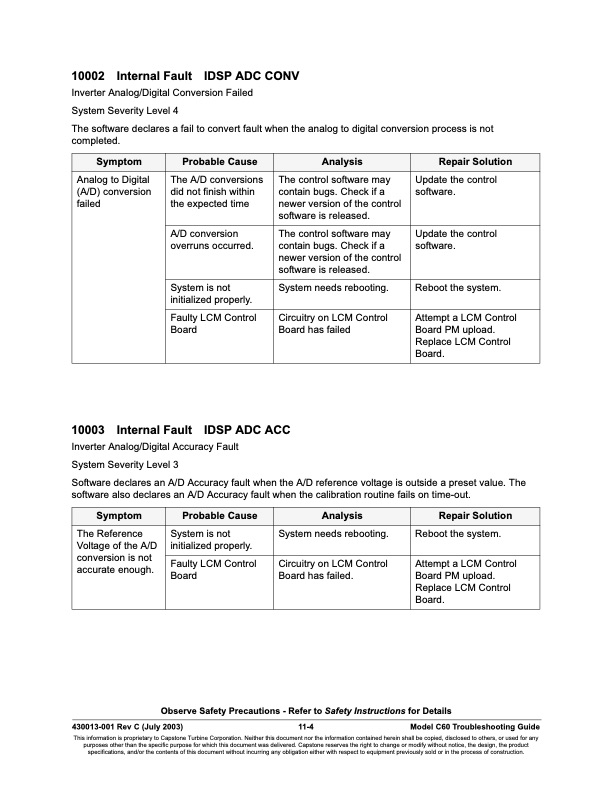

10002 Internal Fault IDSP ADC CONV Inverter Analog/Digital Conversion Failed System Severity Level 4 The software declares a fail to convert fault when the analog to digital conversion process is not completed. Symptom Probable Cause Analysis Repair Solution Analog to Digital (A/D) conversion failed The A/D conversions did not finish within the expected time The control software may contain bugs. Check if a newer version of the control software is released. Update the control software. A/D conversion overruns occurred. The control software may contain bugs. Check if a newer version of the control software is released. Update the control software. System is not initialized properly. System needs rebooting. Reboot the system. Faulty LCM Control Board Circuitry on LCM Control Board has failed Attempt a LCM Control Board PM upload. Replace LCM Control Board. 10003 Internal Fault IDSP ADC ACC Inverter Analog/Digital Accuracy Fault System Severity Level 3 Software declares an A/D Accuracy fault when the A/D reference voltage is outside a preset value. The software also declares an A/D Accuracy fault when the calibration routine fails on time-out. Symptom Probable Cause Analysis Repair Solution The Reference Voltage of the A/D conversion is not accurate enough. System is not initialized properly. System needs rebooting. Reboot the system. Faulty LCM Control Board Circuitry on LCM Control Board has failed. Attempt a LCM Control Board PM upload. Replace LCM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-4 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
