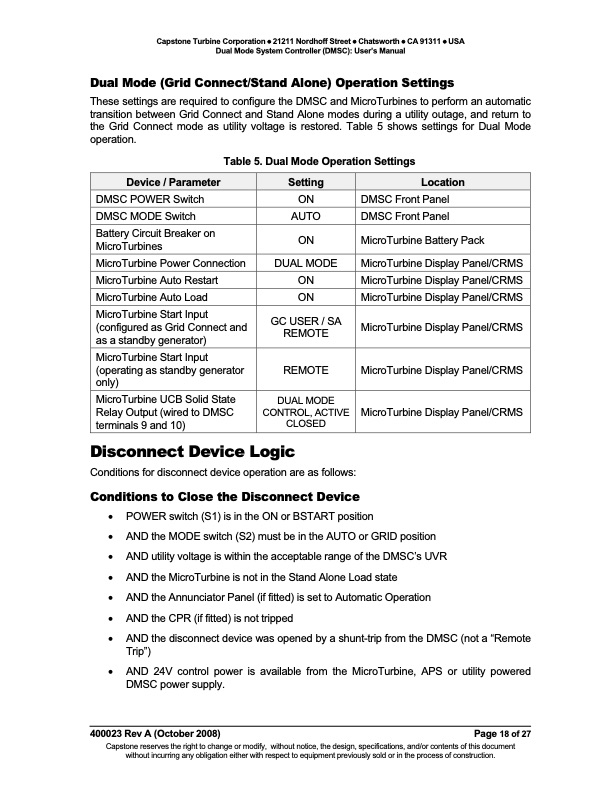

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode System Controller (DMSC): User’s Manual Dual Mode (Grid Connect/Stand Alone) Operation Settings These settings are required to configure the DMSC and MicroTurbines to perform an automatic transition between Grid Connect and Stand Alone modes during a utility outage, and return to the Grid Connect mode as utility voltage is restored. Table 5 shows settings for Dual Mode operation. Table 5. Dual Mode Operation Settings Device / Parameter Setting Location DMSC POWER Switch DMSC MODE Switch Battery Circuit Breaker on MicroTurbines MicroTurbine Power Connection MicroTurbine Auto Restart MicroTurbine Auto Load ON AUTO ON DUAL MODE ON ON DMSC Front Panel DMSC Front Panel MicroTurbine Battery Pack MicroTurbine Display Panel/CRMS MicroTurbine Display Panel/CRMS MicroTurbine Display Panel/CRMS MicroTurbine Start Input (configured as Grid Connect and as a standby generator) GCUSER/SA REMOTE MicroTurbine Display Panel/CRMS MicroTurbine Start Input (operating as standby generator only) REMOTE MicroTurbine Display Panel/CRMS MicroTurbine UCB Solid State Relay Output (wired to DMSC terminals 9 and 10) DUAL MODE CONTROL, ACTIVE CLOSED MicroTurbine Display Panel/CRMS Disconnect Device Logic Conditions for disconnect device operation are as follows: Conditions to Close the Disconnect Device • POWER switch (S1) is in the ON or BSTART position • AND the MODE switch (S2) must be in the AUTO or GRID position • AND utility voltage is within the acceptable range of the DMSC’s UVR • AND the MicroTurbine is not in the Stand Alone Load state • AND the Annunciator Panel (if fitted) is set to Automatic Operation • AND the CPR (if fitted) is not tripped • AND the disconnect device was opened by a shunt-trip from the DMSC (not a “Remote Trip”) • AND 24V control power is available from the MicroTurbine, APS or utility powered DMSC power supply. 400023 Rev A (October 2008) Page 18 of 27 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE SYSTEM CONTROLLER (DMSC) USER’S MANUAL
