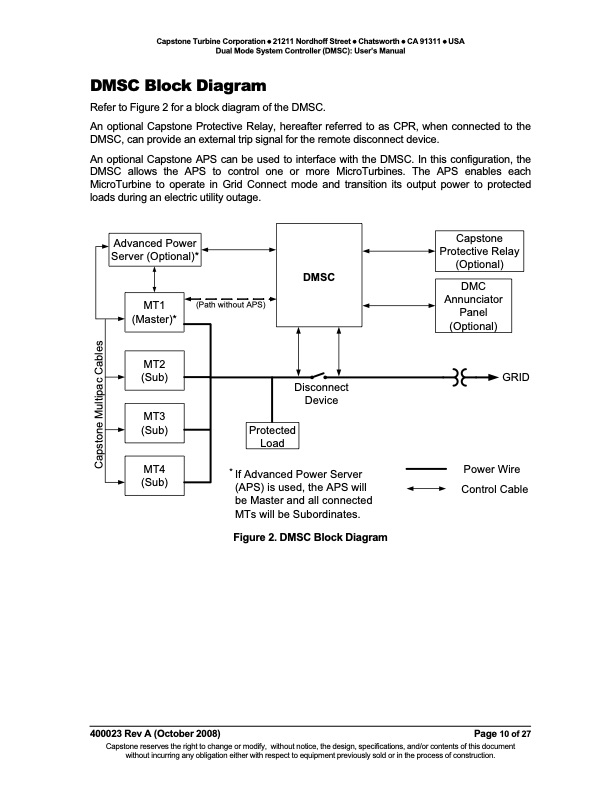

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode System Controller (DMSC): User’s Manual DMSC Block Diagram Refer to Figure 2 for a block diagram of the DMSC. An optional Capstone Protective Relay, hereafter referred to as CPR, when connected to the DMSC, can provide an external trip signal for the remote disconnect device. An optional Capstone APS can be used to interface with the DMSC. In this configuration, the DMSC allows the APS to control one or more MicroTurbines. The APS enables each MicroTurbine to operate in Grid Connect mode and transition its output power to protected loads during an electric utility outage. Advanced Power Server (Optional)* 400023 Rev A (October 2008) Page 10 of 27 (Path without APS) DMSC Disconnect Device * If Advanced Power Server (APS) is used, the APS will be Master and all connected MTs will be Subordinates. Figure 2. DMSC Block Diagram GRID Power Wire Control Cable Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Protective Relay (Optional) DMC Annunciator Panel (Optional) MT1 (Master)* MT2 (Sub) MT3 (Sub) Protected Load MT4 (Sub) Capstone Multipac CablesPDF Image | DUAL MODE SYSTEM CONTROLLER (DMSC) USER’S MANUAL
