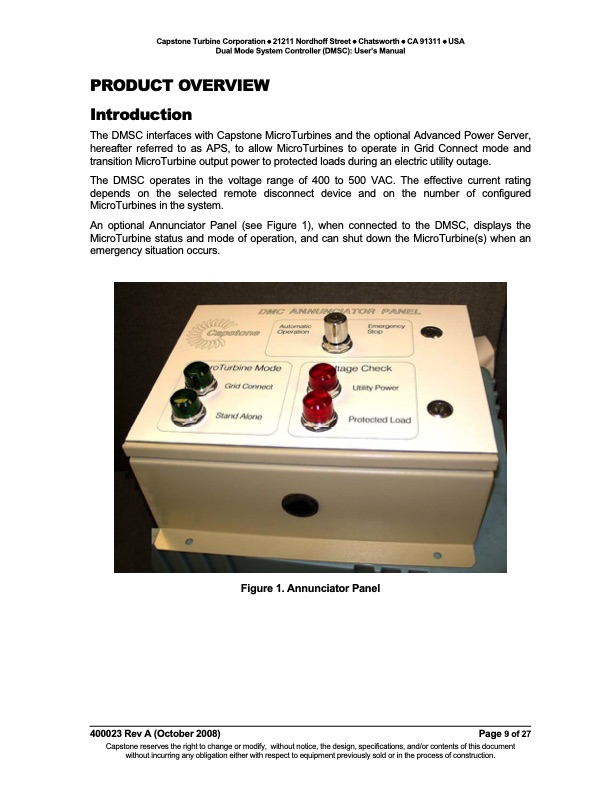

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode System Controller (DMSC): User’s Manual PRODUCT OVERVIEW Introduction The DMSC interfaces with Capstone MicroTurbines and the optional Advanced Power Server, hereafter referred to as APS, to allow MicroTurbines to operate in Grid Connect mode and transition MicroTurbine output power to protected loads during an electric utility outage. The DMSC operates in the voltage range of 400 to 500 VAC. The effective current rating depends on the selected remote disconnect device and on the number of configured MicroTurbines in the system. An optional Annunciator Panel (see Figure 1), when connected to the DMSC, displays the MicroTurbine status and mode of operation, and can shut down the MicroTurbine(s) when an emergency situation occurs. 400023 Rev A (October 2008) Page 9 of 27 Figure 1. Annunciator Panel Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE SYSTEM CONTROLLER (DMSC) USER’S MANUAL
