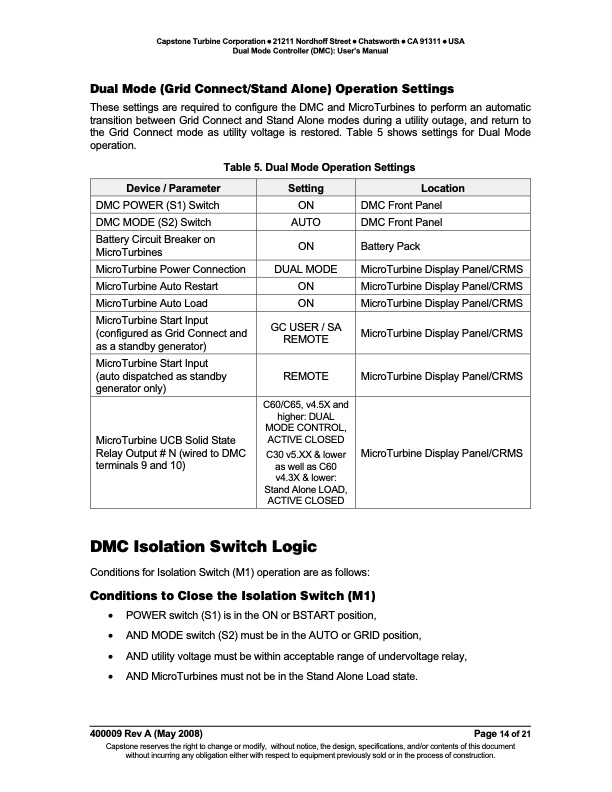

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode Controller (DMC): User’s Manual Dual Mode (Grid Connect/Stand Alone) Operation Settings These settings are required to configure the DMC and MicroTurbines to perform an automatic transition between Grid Connect and Stand Alone modes during a utility outage, and return to the Grid Connect mode as utility voltage is restored. Table 5 shows settings for Dual Mode operation. Table 5. Dual Mode Operation Settings Device / Parameter Setting Location DMC POWER (S1) Switch DMC MODE (S2) Switch Battery Circuit Breaker on MicroTurbines MicroTurbine Power Connection MicroTurbine Auto Restart MicroTurbine Auto Load ON AUTO ON DUAL MODE ON ON DMC Front Panel DMC Front Panel Battery Pack MicroTurbine Display Panel/CRMS MicroTurbine Display Panel/CRMS MicroTurbine Display Panel/CRMS MicroTurbine Start Input (configured as Grid Connect and as a standby generator) GCUSER/SA REMOTE MicroTurbine Display Panel/CRMS MicroTurbine Start Input (auto dispatched as standby generator only) REMOTE MicroTurbine Display Panel/CRMS MicroTurbine UCB Solid State Relay Output # N (wired to DMC terminals 9 and 10) C60/C65, v4.5X and higher: DUAL MODE CONTROL, ACTIVE CLOSED C30 v5.XX & lower as well as C60 v4.3X & lower: Stand Alone LOAD, ACTIVE CLOSED MicroTurbine Display Panel/CRMS DMC Isolation Switch Logic Conditions for Isolation Switch (M1) operation are as follows: Conditions to Close the Isolation Switch (M1) • POWER switch (S1) is in the ON or BSTART position, • AND MODE switch (S2) must be in the AUTO or GRID position, • AND utility voltage must be within acceptable range of undervoltage relay, • AND MicroTurbines must not be in the Stand Alone Load state. 400009 Rev A (May 2008) Page 14 of 21 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE CONTROLLER (DMC) USER’S MANUAL
