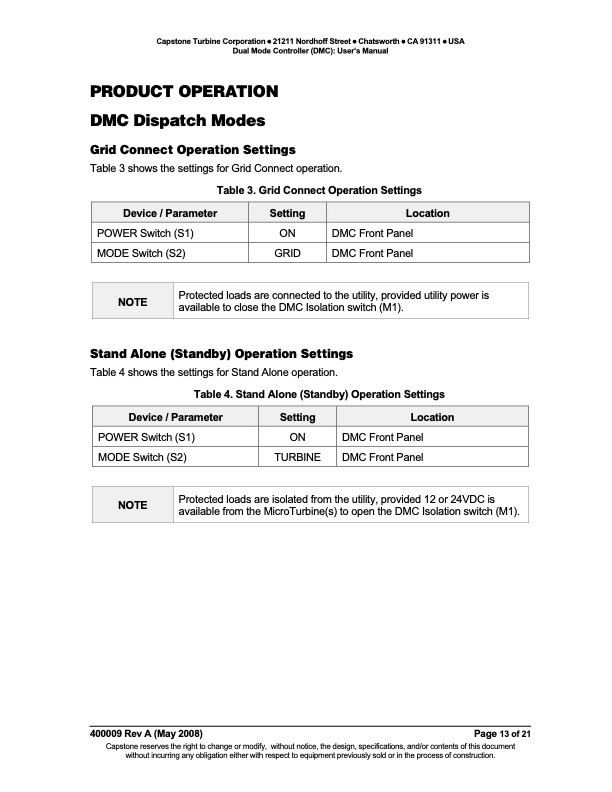

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode Controller (DMC): User’s Manual PRODUCT OPERATION DMC Dispatch Modes Grid Connect Operation Settings Table 3 shows the settings for Grid Connect operation. Table 3. Grid Connect Operation Settings POWER Switch (S1) ON DMC Front Panel MODE Switch (S2) GRID DMC Front Panel Device / Parameter Setting Location NOTE Protected loads are connected to the utility, provided utility power is available to close the DMC Isolation switch (M1). Stand Alone (Standby) Operation Settings Table 4 shows the settings for Stand Alone operation. Table 4. Stand Alone (Standby) Operation Settings POWER Switch (S1) ON DMC Front Panel MODE Switch (S2) TURBINE DMC Front Panel Device / Parameter Setting Location NOTE Protected loads are isolated from the utility, provided 12 or 24VDC is available from the MicroTurbine(s) to open the DMC Isolation switch (M1). 400009 Rev A (May 2008) Page 13 of 21 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE CONTROLLER (DMC) USER’S MANUAL
