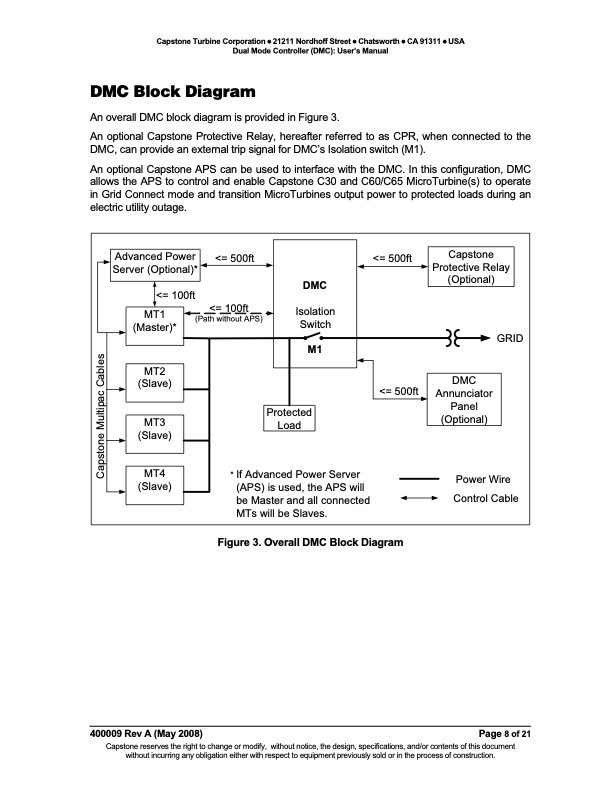

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode Controller (DMC): User’s Manual DMC Block Diagram An overall DMC block diagram is provided in Figure 3. An optional Capstone Protective Relay, hereafter referred to as CPR, when connected to the DMC, can provide an external trip signal for DMC’s Isolation switch (M1). An optional Capstone APS can be used to interface with the DMC. In this configuration, DMC allows the APS to control and enable Capstone C30 and C60/C65 MicroTurbine(s) to operate in Grid Connect mode and transition MicroTurbines output power to protected loads during an electric utility outage. Advanced Power Server (Optional)* <= 500ft <= 500ft <= 100ft <= 100ft (Path without APS) MT1 (Master)* GRID DMC Isolation Switch M1 MT2 (Slave) MT3 (Slave) Protected Load MT4 (Slave) * If Advanced Power Server (APS) is used, the APS will be Master and all connected MTs will be Slaves. Power Wire Control Cable <= 500ft Capstone Protective Relay (Optional) DMC Annunciator Panel (Optional) Figure 3. Overall DMC Block Diagram 400009 Rev A (May 2008) Page 8 of 21 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Multipac CablesPDF Image | DUAL MODE CONTROLLER (DMC) USER’S MANUAL
