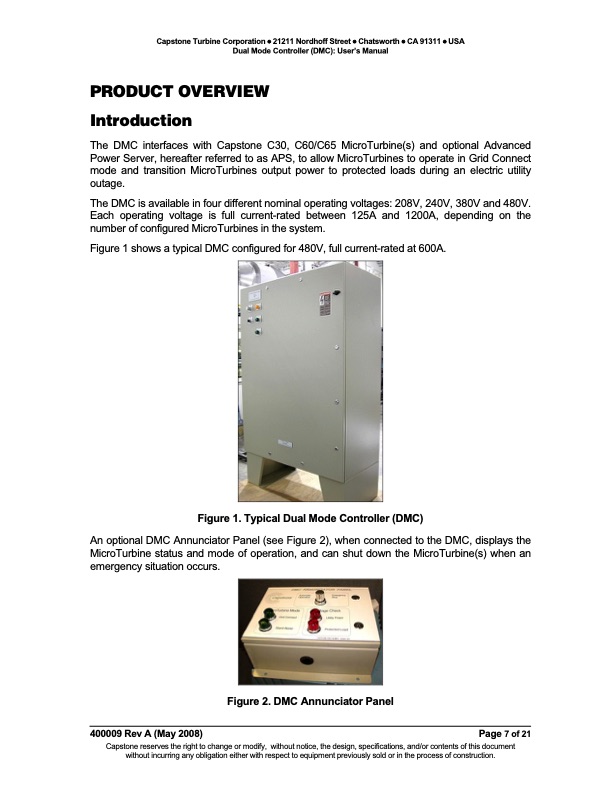

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode Controller (DMC): User’s Manual PRODUCT OVERVIEW Introduction The DMC interfaces with Capstone C30, C60/C65 MicroTurbine(s) and optional Advanced Power Server, hereafter referred to as APS, to allow MicroTurbines to operate in Grid Connect mode and transition MicroTurbines output power to protected loads during an electric utility outage. The DMC is available in four different nominal operating voltages: 208V, 240V, 380V and 480V. Each operating voltage is full current-rated between 125A and 1200A, depending on the number of configured MicroTurbines in the system. Figure 1 shows a typical DMC configured for 480V, full current-rated at 600A. Figure 1. Typical Dual Mode Controller (DMC) An optional DMC Annunciator Panel (see Figure 2), when connected to the DMC, displays the MicroTurbine status and mode of operation, and can shut down the MicroTurbine(s) when an emergency situation occurs. 400009 Rev A (May 2008) Page 7 of 21 Figure 2. DMC Annunciator Panel Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE CONTROLLER (DMC) USER’S MANUAL
