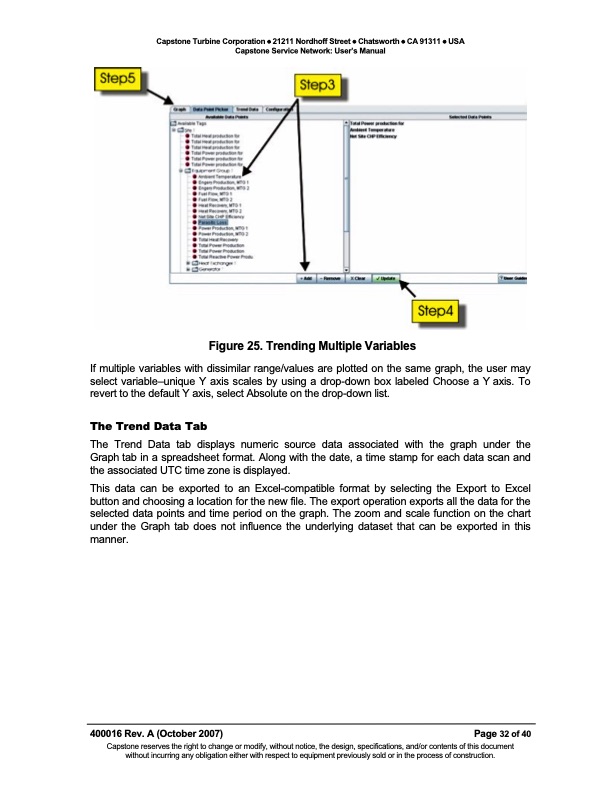

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual Figure 25. Trending Multiple Variables If multiple variables with dissimilar range/values are plotted on the same graph, the user may select variable–unique Y axis scales by using a drop-down box labeled Choose a Y axis. To revert to the default Y axis, select Absolute on the drop-down list. The Trend Data Tab The Trend Data tab displays numeric source data associated with the graph under the Graph tab in a spreadsheet format. Along with the date, a time stamp for each data scan and the associated UTC time zone is displayed. This data can be exported to an Excel-compatible format by selecting the Export to Excel button and choosing a location for the new file. The export operation exports all the data for the selected data points and time period on the graph. The zoom and scale function on the chart under the Graph tab does not influence the underlying dataset that can be exported in this manner. 400016 Rev. A (October 2007) Page 32 of 40 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
